Belden Equivalent Cables 8185
Multipair Individually and Overall Screened Cables

Application

These cables have individually screened pairs laid up in a foil/braid screen. Each individually screened pair has a 24AWG stranded tinned copper drain wire. These cables are suitable for EIA RS-232 and EIA RS-422 applications, used as computer cables.

Construction

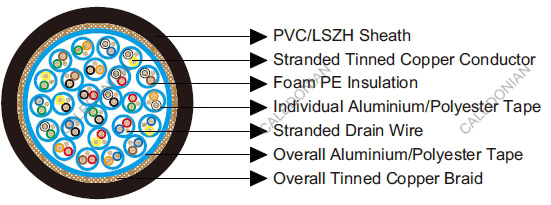

Belden Equivalent Cables 8185

Conductor: Tinned copper wire.

Insulation: FoamPE.

Individual Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Overall Screen1: Aluminium/Polyester Tape.

Overall Screen2: Tinned copper braid, 65% coverage.

Sheath: PVC/LSZH.

Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue, Green & Yellow, Green & Brown, Green & Orange, White & Blue, White & Yellow, White & Brown, White & Orange, Blue & Yellow, Blue & Brown, Blue & Orange.

Electrical & Mechanical Characteristics

AWG   24
Conductor Construction   7x0.2
UL Style   2493
Maximum Conductor Resistance Ω/km 85
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 41
Nominal Capacitance Conductor to Screen pF/m 72
Bending Radius   10xOverall Diameter
Operating Temperature -40~60

Dimensions

Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118185V 25 0.47 1.22 20.9
BE118185H 25 0.47 1.22 20.9
