Belden Equivalent Cables 28538
Multipair Overall Foil & Braid Screened Cables
Multicore Unscreened Armoured Cables

Application

These multicore unscreened armoured cables are Type MC Metal Clad cables.

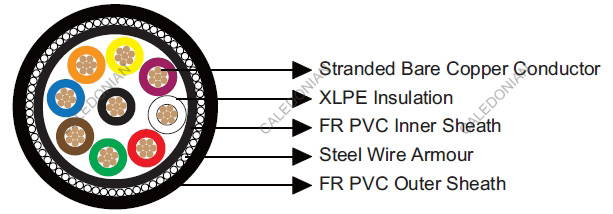

Construction

Belden Equivalent 28538

Conductor: Bare copper wire.

Insulation: XLPE.

Inner Sheath: FR PVC.

Armour: Steel wire armour

Outer Sheath: FR PVC

Insulation Colour: Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple. Other colours are available upon your request.

Electrical & Mechanical Characteristics

AWG   12
Conductor Construction   7x20
Nominal Conductor DC Resistance @20℃ Ω/km 5
Voltage Rating V 600
Bending Radius   13xOverall Diameter
Operating Temperature ℃ -40~90

Dimensions

Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE1128538V SWA 9 0.8 1.7 24.82
