Belden Equivalent Cables 28271
Multipair Overall Foil & Braid Screened Cables
Multicore Unscreened Armoured Cables

Application

These multicore unscreened armoured cables are Type MC Metal Clad cables

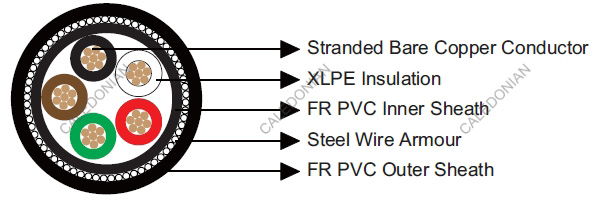

Construction

Belden Equivalent 28271

Conductor: Bare copper wire

Insulation: XLPE.

Inner Sheath: FR PVC.

Armour: Steel wire armour

Outer Sheath: FR PVC

Insulation Colour: Black, White, Red, Green, Brown. Other colours are available upon your request.

Electrical & Mechanical Characteristics

AWG   12
Conductor Construction   7x20
Nominal Conductor DC Resistance @20℃ Ω/km 5
Voltage Rating V 600
Bending Radius   13xOverall Diameter
Operating Temperature ℃ -40~90

Dimensions

Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE1128271V SWA 5 0.8 1.7 19.72
