Belden Equivalent Cables 26500
Multipair Overall Foil & Braid Screened Armoured Cables

Application

These multipair overall screened armoured cables provide excellent protections. They are ACIC armoured cables, used as instrumentation cables.

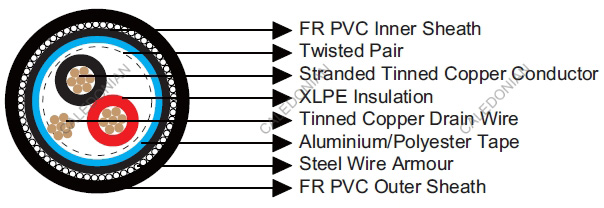

Construction

Belden Equivalent 26500

Conductor: Conductor: Tinned copper wire

Insulation: XLPE.

Overall Screen: Aluminium/ Polyester tape.

Drain Wire: 18 AWG (7X26) tinned copper wire

Inner Sheath: FR PVC.

Armour: Steel wire armour.

Outer Sheath: FR PVC.

Insulation Colour: Black, Red. Other colours are available upon your request.

Electrical & Mechanical Characteristics

AWG   16
Conductor Construction   7x24
Nominal Conductor DC Resistance @20℃ Ω/km 14
Nominal Outer Shield DC Resistance @ 20℃ Ω/km 13
Voltage Rating V 300
Bending Radius   11xOverall Diameter
Operating Temperature ℃ -40~90

Dimensions

Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE1126500V SWA 1 0.7 1.5 13.24±1
