YCY 0.6/1kV
Application
These screened cables are designed for flexible use for medium mechanical stresses as measuring and control cables in tool machines, conveyor belts, production lines; for plant installations, air conditioning, in steel production plants and rolling mills, suitable for dry, moist and wet rooms as well as outside (fixed installation).
Standards
- DIN VDE 0262/12.95
- DIN VDE 0281 part 13

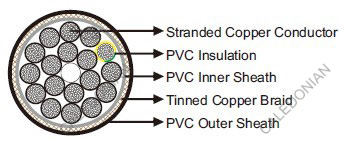

Construction
| Conductor |
Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228. |
| Insulation |
PVC Type TI 2 |
| Inner Sheath |
PVC. |
| Screen |
Tinned copper braid. |
| Outer Sheath |
PVC Type TM 2. |
Technical Data
| Rated Voltage Uo/U (Um) |
600/1000V |
| Operating Temperatures |
flexing: -5℃~+80℃; fixed: -40℃~+90℃ |
| Minimum Bending Radius |
flexing: 10×OD; fixed: 5×OD |
| Flame Retardant |
VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
| Oil Resistant |
Yes |
| Silicone Free |
Yes |
| UV Resistant |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of coresGmm2 |
mm |
kg/km |
| 2×0.5 |
8.5 |
129 |
| 3G0.5 |
8.8 |
150 |
| 4G0.5 |
9.6 |
170 |
| 5G0.5 |
10.2 |
199 |
| 7G0.5 |
11.1 |
235 |
| 12G0.5 |
14.0 |
320 |
| 18G0.5 |
16.2 |
428 |
| 25G0.5 |
19.2 |
503 |
| 2×0.75 |
8.8 |
143 |
| 3G0.75 |
9.3 |
155 |
| 4G0.75 |
9.9 |
190 |
| 5G0.75 |
10.8 |
228 |
| 7G0.75 |
11.5 |
323 |
| 12G0.75 |
14.6 |
410 |
| 18G0.75 |
17.1 |
560 |
| 25G0.75 |
20.3 |
730 |
| 2×1 |
9.4 |
150 |
| 3G1 |
9.8 |
163 |
| 4G1 |
10.4 |
200 |
| 5G1 |
11.4 |
239 |
| 7G1 |
12.5 |
289 |
| 12G1 |
15.7 |
464 |
| 18G1 |
18.4 |
628 |
| 25G1 |
21.8 |
855 |
| 2×1.5 |
10.4 |
162 |
| 3G1.5 |
11.1 |
187 |
| 4G1.5 |
11.8 |
240 |
| 5G1.5 |
13.1 |
289 |
| 7G1.5 |
14.2 |
383 |
| 12G1.5 |
18.4 |
592 |
| 18G1.5 |
21.5 |
806 |
| 25G1.5 |
25.6 |
1241 |
| 2×2.5 |
11.8 |
272 |
| 3G2.5 |
12.7 |
298 |
| 4G2.5 |
13.8 |
345 |
| 5G2.5 |
15.1 |
427 |
| 7G2.5 |
16.3 |
561 |
| 12G2.5 |
21.3 |
857 |
| 18G2.5 |
25.4 |
1355 |
| 25G2.5 |
30.0 |
1995 |
| 2×4 |
14.2 |
306 |
| 3G4 |
15.1 |
391 |
| 4G4 |
16.2 |
527 |
| 5G4 |
18.0 |
700 |
| 7G4 |
19.8 |
920 |
| 12G4 |
25.8 |
1510 |
| 2×6 |
15.9 |
420 |
| 3G6 |
16.9 |
629 |
| 4G6 |
18.7 |
731 |
| 5G6 |
20.4 |
1105 |
| 7G6 |
22.2 |
1465 |
| 2×10 |
18.3 |
845 |
| 3G10 |
19.2 |
1125 |
| 4G10 |
21.2 |
1345 |
| 5G10 |
23.2 |
1635 |
| 7G10 |
26.8 |
2210 |
| 2×16 |
22.8 |
1150 |
| 3G16 |
24.7 |
1395 |
| 4G16 |
27.0 |
1870 |
| 5G16 |
30.0 |
2720 |
| 7G16 |
32.2 |
3213 |
| 3G25 |
29.2 |
2465 |
| 4G25 |
32.0 |
2750 |
| 5G25 |
35.7 |
3490 |
| 7G25 |
39.0 |
4980 |
| 3G35 |
32.3 |
3230 |
| 4G35 |
35.8 |
4100 |
| 5G35 |
39.5 |
4950 |
| 3G50 |
39.7 |
4590 |
| 4G50 |
43.4 |
5780 |
| 5G50 |
47.8 |
7210 |
| 3G70 |
44.9 |
5610 |
| 4G70 |
49.1 |
7480 |
| 5G70 |
53.8 |
9390 |
| 3G95 |
49.6 |
8585 |
| 4G95 |
54.1 |
10220 |
| 5G95 |
57.7 |
13800 |
| 3G120 |
51.5 |
11105 |
| 4G120 |
59.4 |
13750 |
| 4G150 |
67.9 |
15990 |
| 4G185 |
74.0 |
18470 |
G: with green-yellow earth core
×: without green-yellow earth core
