YCY 0.6/1kV UL/CSA
Application
These screened cables are designed for flexible use for medium mechanical stresses as measuring and control cables in tool machines, conveyor belts, production lines; for plant installations, air conditioning, in steel production plants and rolling mills, suitable for dry, moist and wet rooms as well as outside (fixed installation) .
Standards
- VDE 0276 part 627
- DIN VDE 0281 part 13
- UL 758
- IEC 60502

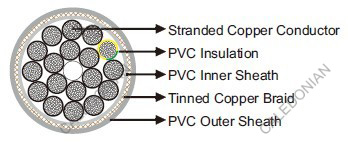

Construction
| Conductor |
Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228. |
| Insulation |
PVC type TI2 according to DIN VDE 0281 part 1, class 43 UL-Std. 1581. |
| Inner Sheath |
PVC type TM 2 according to DIN VDE 0281 part 1, class 43 UL-Std. 1581. |
| Screen |
Tinned copper braid. |
| Outer Sheath |
PVC type TM 2 according to DIN VDE 0281 part 1, class 43 UL-Std. 1581. |
Technical Data
| Rated Voltage Uo/U (Um) |
600/1000V |
| Operating Temperatures |
flexing: -5℃~+80℃; fixed: -40℃~+90℃ |
| Minimum Bending Radius |
flexing: 10×OD; fixed: 5×OD |
| Flame Retardant |
VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1/VW 1/FT1 |
| Oil Resistant |
Yes |
| Silicone Free |
Yes |
| UV Resistant |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm2 |
mm |
kg/km |
| 2×0.5 |
8.3 |
129 |
| 3G0.5 |
8.6 |
150 |
| 4G0.5 |
9.4 |
170 |
| 5G0.5 |
10.1 |
199 |
| 7G0.5 |
12.1 |
235 |
| 12G0.5 |
14.7 |
320 |
| 18G0.5 |
17.3 |
428 |
| 25G0.5 |
20.6 |
503 |
| 2×0.75 |
8.7 |
143 |
| 3G0.75 |
9.0 |
155 |
| 4G0.75 |
9.9 |
190 |
| 5G0.75 |
10.8 |
228 |
| 7G0.75 |
13.0 |
323 |
| 12G0.75 |
15.8 |
410 |
| 18G0.75 |
17.9 |
560 |
| 25G0.75 |
22.8 |
730 |
| 2×1 |
9.4 |
150 |
| 3G1 |
9.8 |
163 |
| 4G1 |
10.8 |
200 |
| 5G1 |
12.1 |
239 |
| 7G1 |
14.5 |
289 |
| 12G1 |
17.4 |
464 |
| 18G1 |
20.7 |
628 |
| 25G1 |
24.8 |
855 |
| 2×1.5 |
10.2 |
162 |
| 3G1.5 |
10.9 |
187 |
| 4G1.5 |
12.2 |
240 |
| 5G1.5 |
13.3 |
289 |
| 7G1.5 |
16.0 |
383 |
| 12G1.5 |
19.6 |
592 |
| 18G1.5 |
23.4 |
806 |
| 25G1.5 |
28.2 |
1241 |
| 2×2.5 |
11.5 |
272 |
| 3G2.5 |
12.2 |
298 |
| 4G2.5 |
13.4 |
345 |
| 5G2.5 |
14.9 |
427 |
| 7G2.5 |
17.9 |
561 |
| 12G2.5 |
21.9 |
857 |
| 18G2.5 |
26.1 |
1355 |
| 25G2.5 |
31.9 |
1995 |
| 2×4 |
14.3 |
306 |
| 3G4 |
15.1 |
391 |
| 4G4 |
16.7 |
527 |
| 5G4 |
18.6 |
700 |
| 7G4 |
20.0 |
920 |
| 3G6 |
17.0 |
629 |
| 4G6 |
18.7 |
731 |
| 5G6 |
20.7 |
1105 |
| 7G6 |
23.0 |
1465 |
| 3G10 |
19.6 |
1125 |
| 4G10 |
21.9 |
1345 |
| 5G10 |
24.1 |
1635 |
| 7G10 |
26.8 |
2210 |
| 3G16 |
23.5 |
1395 |
| 4G16 |
26.4 |
1870 |
| 5G16 |
28.8 |
2720 |
| 7G16 |
31.9 |
3213 |
| 3G25 |
28.0 |
2465 |
| 4G25 |
32.5 |
2750 |
| 5G25 |
35.7 |
3490 |
| 7G25 |
39.0 |
4980 |
G: with green-yellow earth core
×: without green-yellow earth core
