Y 300/500V
Application
These cables are designed for flexible use for mechanical stresses as measuring, control and regulating cables in tool machines, conveyor belts, and production lines in machinery production, in air-conditioning and in steel production, suitable for dry, moist and wet rooms.
Standards

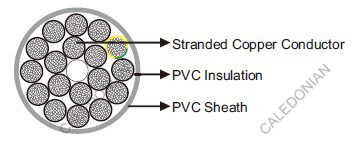

Construction
| Conductor |
Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228. |
| Insulation |
PVC Type YI 2. |
| Sheath |
PVC Type YM 2/TM 2. |
Technical Data
| Rated Voltage Uo/U (Um) |
300/500V |
| Operating Temperatures |
flexing: -15℃~+70℃; fixed: -40℃~+70℃ |
| Minimum Bending Radius |
flexing: 20×OD; fixed: 10×OD |
| Flame Retardant |
VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
| Oil Resistant |
Yes |
| Ozone Resistant |
Yes |
| Silicone Free |
Yes |
| Lead Free |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm2 |
mm |
kg/km |
| 2×0.5 |
4.7 |
32 |
| 3G0.5 |
5.1 |
39 |
| 4G0.5 |
5.4 |
46 |
| 5G0.5 |
6.2 |
57 |
| 6G0.5 |
7.2 |
64 |
| 7G0.5 |
6.6 |
70 |
| 8G0.5 |
7.0 |
77 |
| 10G0.5 |
8.4 |
97 |
| 12G0.5 |
8.6 |
110 |
| 16G0.5 |
10.1 |
148 |
| 18G0.5 |
10.1 |
160 |
| 21G0.5 |
11.4 |
188 |
| 25G0.5 |
12.5 |
219 |
| 30G0.5 |
13.2 |
264 |
| 34G0.5 |
13.8 |
283 |
| 40G0.5 |
14.8 |
333 |
| 42G0.5 |
15.4 |
353 |
| 50G0.5 |
17.4 |
441 |
| 65G0.5 |
19.4 |
556 |
| 80G0.5 |
21.2 |
680 |
| 100G0.5 |
23.4 |
844 |
| 2×0.75 |
5.1 |
39 |
| 3×0.75 |
5.4 |
50 |
| 3G0.75 |
5.4 |
50 |
| 4G0.75 |
5.9 |
60 |
| 5G0.75 |
6.7 |
72 |
| 6G0.75 |
6.9 |
81 |
| 7G0.75 |
7.1 |
90 |
| 8G0.75 |
7.4 |
100 |
| 9G0.75 |
8.1 |
128 |
| 10G0.75 |
9.1 |
124 |
| 12G0.75 |
9.4 |
146 |
| 14G0.75 |
9.9 |
166 |
| 15G0.75 |
10.6 |
182 |
| 16G0.75 |
10.8 |
215 |
| 18G0.75 |
11.1 |
211 |
| 21G0.75 |
12.4 |
254 |
| 25G0.75 |
13.4 |
289 |
| 32G0.75 |
14.9 |
380 |
| 34G0.75 |
15.1 |
378 |
| 41G0.75 |
16.0 |
452 |
| 42G0.75 |
16.0 |
461 |
| 50G0.75 |
18.1 |
559 |
| 61G0.75 |
19.8 |
673 |
| 65G0.75 |
20.7 |
774 |
| 80G0.75 |
22.1 |
879 |
| 100G0.75 |
24.6 |
1084 |
| 2×1 |
5.3 |
49 |
| 3×1 |
5.8 |
57 |
| 3G1 |
5.6 |
60 |
| 4×1 |
6.1 |
69 |
| 4G1 |
6.5 |
69 |
| 5G1 |
6.7 |
83 |
| 6G1 |
7.0 |
101 |
| 7G1 |
7.5 |
104 |
| 8G1 |
8.0 |
120 |
| 9G1 |
9.9 |
161 |
| 10G1 |
9.9 |
161 |
| 12G1 |
9.9 |
174 |
| 14G1 |
10.6 |
202 |
| 15G1 |
11.1 |
215 |
| 16G1 |
11.1 |
226 |
| 18G1 |
11.7 |
252 |
| 21G1 |
13.1 |
305 |
| 25G1 |
14.3 |
346 |
| 34G1 |
16.3 |
477 |
| 41G1 |
17.7 |
566 |
| 42G1 |
17.9 |
578 |
| 50G1 |
19.1 |
682 |
| 61G1 |
20.5 |
883 |
| 65G1 |
21.5 |
949 |
| 80G1 |
24.3 |
1092 |
| 100G1 |
27.5 |
1398 |
| 2×1.5 |
6.2 |
61 |
| 3×1.5 |
6.7 |
78 |
| 3G1.5 |
6.5 |
79 |
| 4×1.5 |
7.2 |
97 |
| 4G1.5 |
7.4 |
92 |
| 5G1.5 |
7.9 |
109 |
| 6G1.5 |
8.6 |
133 |
| 7G1.5 |
9.0 |
147 |
| 8G1.5 |
9.5 |
169 |
| 9G1.5 |
10.5 |
185 |
| 10G1.5 |
11.3 |
210 |
| 12G1.5 |
11.6 |
237 |
| 14G1.5 |
12.0 |
271 |
| 16G1.5 |
12.9 |
310 |
| 18G1.5 |
13.7 |
347 |
| 21G1.5 |
14.9 |
403 |
| 25G1.5 |
16.9 |
490 |
| 32G1.5 |
18.1 |
606 |
| 34G1.5 |
18.8 |
642 |
| 42G1.5 |
20.5 |
798 |
| 50G1.5 |
22.2 |
926 |
| 61G1.5 |
23.7 |
1119 |
| 65G1.5 |
24.7 |
1020 |
| 80G1.5 |
28.3 |
1545 |
| 100G1.5 |
30.1 |
1808 |
| 2×2.5 |
7.3 |
92 |
| 3G2.5 |
7.7 |
119 |
| 4G2.5 |
8.5 |
148 |
| 5G2.5 |
9.7 |
180 |
| 7G2.5 |
10.1 |
232 |
| 8G2.5 |
11.3 |
274 |
| 12G2.5 |
13.9 |
377 |
| 18G2.5 |
17.1 |
575 |
| 25G2.5 |
20.7 |
786 |
| 34G2.5 |
21.7 |
1080 |
| 50G2.5 |
28.7 |
1566 |
| 3G4 |
9.3 |
176 |
| 4G4 |
10.2 |
219 |
| 5G4 |
11.6 |
269 |
| 7G4 |
12.8 |
356 |
| 3G6 |
11.0 |
255 |
| 4G6 |
12.3 |
323 |
| 5G6 |
13.5 |
391 |
| 7G6 |
14.9 |
519 |
| 3G10 |
14.0 |
411 |
| 4G10 |
15.0 |
513 |
| 5G10 |
17.1 |
650 |
| 7G10 |
18.8 |
844 |
| 3G16 |
18.2 |
653 |
| 4G16 |
19.2 |
844 |
| 5G16 |
21.3 |
1012 |
| 7G16 |
23.8 |
1367 |
| 4G25 |
23.0 |
1252 |
| 5G25 |
25.8 |
1548 |
| 7G25 |
28.5 |
2078 |
| 4G35 |
26.7 |
1658 |
| 5G35 |
29.5 |
2029 |
| 7G35 |
38.0 |
3156 |
| 4G50 |
31.5 |
2360 |
| 5G50 |
34.7 |
2920 |
| 4G70 |
35.7 |
3201 |
| 5G70 |
40.0 |
4011 |
| 4G95 |
41.1 |
4259 |
| 5G95 |
45.6 |
5292 |
| 4G120 |
45.1 |
5263 |
| 4G150 |
62.3 |
8340 |
| 4G185 |
67.0 |
9904 |
G: with green-yellow earth core
×: without green-yellow earth core
