Y 0.6/1kV
Application
These cables are designed for flexible use for medium mechanical stresses as measuring and control cables in tool machines, conveyor belts, production lines; for plant installations, air conditioning, in steel production plants and rolling mills, suitable for dry, moist and wet rooms as well as outside (fixed installation).
Standards
- DIN VDE 0262/12.95
- DIN VDE 0281 part 13

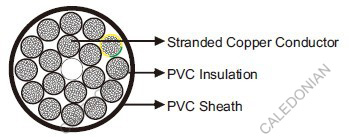

Construction
| Conductor |
Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228. |
| Insulation |
PVC Type TI 2/YI 2. |
| Sheath |
PVC Type TM 2/YM 2. |
Technical Data
| Rated Voltage Uo/U (Um) |
600/1000V |
| Operating Temperatures |
flexing: -5℃~+80℃; fixed: -40℃~+80℃ |
| Minimum Bending Radius |
flexing: 7.5×OD; fixed: 4×OD |
| Flame Retardant |
VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
| Oil Resistant |
Yes |
| Silicone Free |
Yes |
| UV Resistant |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm2 |
mm |
kg/km |
| 2×0.5 |
6.3 |
56 |
| 3G0.5 |
6.7 |
68 |
| 3×0.5 |
6.7 |
68 |
| 4G0.5 |
7.2 |
100 |
| 4×0.5 |
7.2 |
100 |
| 5G0.5 |
8 |
117 |
| 5×0.5 |
8 |
117 |
| 6G0.5 |
8.9 |
126 |
| 7G0.5 |
8.9 |
138 |
| 7×0.5 |
8.9 |
138 |
| 8G0.5 |
10.2 |
150 |
| 8×0.5 |
10.2 |
150 |
| 10G0.5 |
11.2 |
176 |
| 12G0.5 |
11.4 |
200 |
| 12×0.5 |
11.4 |
200 |
| 14G0.5 |
12.3 |
230 |
| 16G0.5 |
12.9 |
250 |
| 18G0.5 |
13.8 |
276 |
| 20G0.5 |
14.4 |
293 |
| 21G0.5 |
14.4 |
305 |
| 25G0.5 |
16.4 |
335 |
| 30G0.5 |
17.2 |
348 |
| 32G0.5 |
18 |
355 |
| 34G0.5 |
18.7 |
520 |
| 40G0.5 |
20.2 |
590 |
| 42G0.5 |
20.2 |
595 |
| 50G0.5 |
22.1 |
715 |
| 52G0.5 |
22.1 |
740 |
| 61G0.5 |
23.6 |
840 |
| 65G0.5 |
25 |
880 |
| 80G0.5 |
27.2 |
960 |
| 100G0.5 |
30.2 |
1050 |
| 2×0.75 |
6.6 |
66 |
| 3G0.75 |
7 |
74 |
| 3×0.75 |
7 |
74 |
| 4G0.75 |
7.6 |
126 |
| 4×0.75 |
7.6 |
126 |
| 5G0.75 |
8.4 |
140 |
| 5×0.75 |
8.4 |
140 |
| 6G0.75 |
9.3 |
170 |
| 6×0.75 |
9.3 |
170 |
| 7G0.75 |
9.3 |
190 |
| 7×0.75 |
9.3 |
190 |
| 8G0.75 |
10.9 |
212 |
| 8×0.75 |
10.9 |
212 |
| 9G0.75 |
11.8 |
227 |
| 10G0.75 |
11.8 |
238 |
| 12G0.75 |
12.3 |
257 |
| 12×0.75 |
12.3 |
257 |
| 14G0.75 |
12.9 |
286 |
| 15G0.75 |
13.8 |
319 |
| 18G0.75 |
14.5 |
362 |
| 20G0.75 |
15.4 |
394 |
| 21G0.75 |
16.1 |
422 |
| 25G0.75 |
17.4 |
486 |
| 32G0.75 |
19.1 |
595 |
| 34G0.75 |
19.9 |
638 |
| 37G0.75 |
19.9 |
696 |
| 40G0.75 |
21.5 |
726 |
| 41G0.75 |
21.5 |
750 |
| 42G0.75 |
21.5 |
770 |
| 50G0.75 |
23.5 |
895 |
| 61G0.75 |
25.3 |
1070 |
| 65G0.75 |
26.9 |
1110 |
| 80G0.75 |
28.9 |
1500 |
| 100G0.75 |
32.1 |
1889 |
| 2×1 |
7 |
80 |
| 3G1 |
7.3 |
96 |
| 3×1 |
7.3 |
96 |
| 4G1 |
8.2 |
100 |
| 4×1 |
8.2 |
100 |
| 5G1 |
9.2 |
130 |
| 5×1 |
9.2 |
130 |
| 6G1 |
9.9 |
150 |
| 7G1 |
9.9 |
170 |
| 7×1 |
9.9 |
170 |
| 8G1 |
11.6 |
230 |
| 9G1 |
12.8 |
250 |
| 10G1 |
12.8 |
270 |
| 10×1 |
12.8 |
270 |
| 12G1 |
13 |
290 |
| 12×1 |
13 |
290 |
| 14G1 |
14 |
320 |
| 16G1 |
14.8 |
360 |
| 18G1 |
15.7 |
405 |
| 18×1 |
15.7 |
405 |
| 20G1 |
16.7 |
450 |
| 21G1 |
17.4 |
510 |
| 24G1 |
18.4 |
550 |
| 25G1 |
18.8 |
570 |
| 25×1 |
18.8 |
570 |
| 26G1 |
18.8 |
590 |
| 30×1 |
19.9 |
650 |
| 34G1 |
21.5 |
750 |
| 36G1 |
21.5 |
790 |
| 40G1 |
23.2 |
850 |
| 40×1 |
23.2 |
850 |
| 41G1 |
23.2 |
890 |
| 42G1 |
23.2 |
900 |
| 50G1 |
25.6 |
1100 |
| 56G1 |
26.4 |
1190 |
| 61G1 |
27.3 |
1266 |
| 65G1 |
29 |
1560 |
| 80G1 |
31.4 |
1810 |
| 100G1 |
34.8 |
1950 |
| 3G16 |
20.5 |
700 |
| 2×1.5 |
8.2 |
95 |
| 3G1.5 |
8.6 |
112 |
| 3×1.5 |
8.6 |
112 |
| 4G1.5 |
9.6 |
139 |
| 4×1.5 |
9.6 |
139 |
| 5G1.5 |
10.7 |
170 |
| 5×1.5 |
10.7 |
170 |
| 6G1.5 |
11.6 |
190 |
| 7G1.5 |
11.6 |
225 |
| 7×1.5 |
11.6 |
225 |
| 8G1.5 |
13.8 |
250 |
| 9G1.5 |
15.2 |
280 |
| 10G1.5 |
15.2 |
300 |
| 11G1.5 |
15.5 |
330 |
| 12G1.5 |
15.5 |
370 |
| 12×1.5 |
15.5 |
370 |
| 14G1.5 |
16.6 |
400 |
| 16G1.5 |
17.5 |
450 |
| 18G1.5 |
18.6 |
520 |
| 19G1.5 |
18.6 |
550 |
| 20G1.5 |
19.7 |
600 |
| 21G1.5 |
20.6 |
600 |
| 25G1.5 |
22.5 |
730 |
| 32G1.5 |
24.5 |
880 |
| 34G1.5 |
25.6 |
950 |
| 40G1.5 |
27.6 |
990 |
| 42G1.5 |
27.6 |
1120 |
| 50G1.5 |
30.4 |
1400 |
| 56G1.5 |
31.5 |
1530 |
| 61G1.5 |
32.6 |
1700 |
| 65G1.5 |
34.8 |
1900 |
| 80G1.5 |
37.4 |
2300 |
| 100G1.5 |
41.6 |
2700 |
| 2×2.5 |
9.4 |
160 |
| 3G2.5 |
10.1 |
175 |
| 3×2.5 |
10.1 |
175 |
| 4G2.5 |
11.2 |
203 |
| 4×2.5 |
11.2 |
203 |
| 5G2.5 |
12.5 |
251 |
| 5×2.5 |
12.5 |
251 |
| 7G2.5 |
13.8 |
330 |
| 7×2.5 |
13.8 |
330 |
| 8G2.5 |
16.1 |
400 |
| 12G2.5 |
18.3 |
553 |
| 14G2.5 |
19.4 |
630 |
| 18G2.5 |
22 |
795 |
| 21G2.5 |
25 |
930 |
| 25G2.5 |
26.7 |
1110 |
| 34G2.5 |
30.4 |
1450 |
| 42G2.5 |
33 |
1750 |
| 50G2.5 |
36.2 |
2100 |
| 61G2.5 |
38.8 |
2540 |
| 100G2.5 |
49.5 |
3850 |
| 2×4 |
11.4 |
180 |
| 3G4 |
12.3 |
230 |
| 4G4 |
13.7 |
310 |
| 5G4 |
15.2 |
410 |
| 7G4 |
16.7 |
540 |
| 8G4 |
19.9 |
710 |
| 12G4 |
22.6 |
860 |
| 3G6 |
14 |
370 |
| 4G6 |
15.5 |
430 |
| 5G6 |
17.3 |
650 |
| 7G6 |
19.2 |
860 |
| 3G10 |
16.4 |
660 |
| 4G10 |
18.2 |
790 |
| 5G10 |
20.4 |
960 |
| 7G10 |
22.4 |
1300 |
| 3G16 |
20.5 |
700 |
| 4G16 |
22.6 |
1100 |
| 5G16 |
25.4 |
1600 |
| 7G16 |
27.8 |
1890 |
| 3G25 |
24.8 |
1450 |
| 4G25 |
27.6 |
1600 |
| 5G25 |
30.3 |
2050 |
| 7G25 |
33.6 |
2900 |
| 3G35 |
27.5 |
1900 |
| 4G35 |
30.5 |
2400 |
| 5G35 |
34.1 |
2900 |
| 3G50 |
33.5 |
2700 |
| 4G50 |
37.2 |
3400 |
| 5G50 |
41.8 |
4361 |
| 3G70 |
38.7 |
3300 |
| 4G70 |
42.7 |
4400 |
| 5G70 |
47.6 |
5807 |
| 3G95 |
43.3 |
5050 |
| 4G95 |
48 |
6010 |
| 5G95 |
52.8 |
7752 |
| 4G120 |
52.6 |
7500 |
| 4G150 |
61.3 |
8640 |
| 4G185 |
67.1 |
10380 |
G: with green-yellow earth core
×: without green-yellow earth core
