Y 0.6/1kV UL/CSA
Application
These cables are designed for flexible use for medium mechanical stresses as measuring and control cables in tool machines, conveyor belts, production lines; for plant installations, air conditioning, in steel production plants and rolling mills, suitable for dry, moist and wet rooms as well as outside (fixed installation).
Standards
- VDE 0276 part 627
- DIN VDE 0281 part 13
- UL 758
- IEC 60502

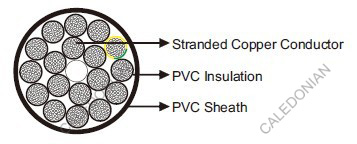

Construction
| Conductor |
Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228. |
| Insulation |
Special PVC type TI2 according to DIN VDE 0281 part 1, class 43 UL-Std. 1581. |
| Sheath |
Special PVC. |
Technical Data
| Rated Voltage Uo/U (Um) |
600/1000V |
| Operating Temperatures |
flexing: -5℃~+80℃; fixed: -40℃~+80℃ |
| Minimum Bending Radius |
flexing: 7.5×OD; fixed: 4×OD |
| Flame Retardant |
VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1/VW1/FT1 |
| Oil Resistant |
Yes |
| Silicone Free |
Yes |
| UV Resistant |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm2 |
mm |
kg/km |
| 2×0.5 |
6.4 |
56 |
| 3G0.5 |
6.8 |
68 |
| 4G0.5 |
7.6 |
100 |
| 5G0.5 |
8.2 |
117 |
| 7G0.5 |
9.8 |
138 |
| 12G0.5 |
12.2 |
200 |
| 18G0.5 |
14.4 |
276 |
| 25G0.5 |
17.2 |
335 |
| 2×0.75 |
6.8 |
66 |
| 3G0.75 |
7.2 |
74 |
| 4G0.75 |
8.0 |
126 |
| 5G0.75 |
8.8 |
140 |
| 7G0.75 |
10.7 |
190 |
| 12G0.75 |
13.1 |
257 |
| 18G0.75 |
15.6 |
362 |
| 25G0.75 |
18.9 |
486 |
| 2×1 |
7.4 |
80 |
| 3G1 |
8.0 |
96 |
| 4G1 |
8.8 |
100 |
| 5G1 |
9.8 |
130 |
| 7G1 |
11.7 |
170 |
| 12G1 |
14.5 |
290 |
| 18G1 |
17.3 |
405 |
| 25G1 |
21.1 |
570 |
| 2×1.5 |
8.4 |
95 |
| 3G1.5 |
9.1 |
112 |
| 4G1.5 |
9.9 |
139 |
| 5G1.5 |
11.0 |
170 |
| 7G1.5 |
13.3 |
225 |
| 12G1.5 |
16.6 |
370 |
| 18G1.5 |
19.7 |
520 |
| 25G1.5 |
23.9 |
730 |
| 2×2.5 |
9.4 |
160 |
| 3G2.5 |
9.9 |
175 |
| 4G2.5 |
11.1 |
203 |
| 5G2.5 |
12.4 |
251 |
| 7G2.5 |
15.0 |
330 |
| 12G2.5 |
18.4 |
553 |
| 18G2.5 |
22.0 |
795 |
| 25G2.5 |
26.9 |
1110 |
| 2×4 |
11.4 |
180 |
| 3G4 |
12.3 |
230 |
| 4G4 |
13.8 |
310 |
| 5G4 |
15.3 |
410 |
| 7G4 |
16.8 |
540 |
| 12G4 |
22.9 |
860 |
| 3G6 |
14.1 |
370 |
| 4G6 |
15.6 |
430 |
| 5G6 |
17.3 |
650 |
| 7G6 |
19.3 |
860 |
| 3G10 |
16.5 |
660 |
| 4G10 |
18.4 |
790 |
| 5G10 |
20.5 |
960 |
| 7G10 |
22.5 |
1300 |
| 3G16 |
19.6 |
760 |
| 4G16 |
21.7 |
1100 |
| 5G16 |
24.2 |
1600 |
| 7G16 |
25.7 |
1890 |
| 3G25 |
24.0 |
1450 |
| 4G25 |
26.9 |
1600 |
| 5G25 |
29.3 |
2050 |
| 7G25 |
32.6 |
2900 |
G: with green-yellow earth core
×: without green-yellow earth core
