PROFInet AWG 22/19

Application

These cables are designed especially for extreme industrial applications, suitable for Ethernet applications.

Standards

  • PROFInet Draft

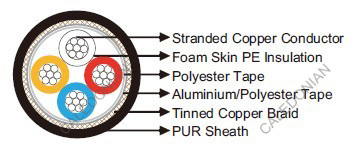

Construction

Windmill Cables
Conductor Tinned copper AWG 22/19.
Insulation Foam skin PE.
Cable Element Star quad.
Screen 1 Polyester tape over stranded bundle.
Screen 2 Aluminium/Polyester tape.
Overall Screen Tinned copper braid.
Sheath PUR.

Technical Data

Operating Temperatures -40℃~+80℃
Minimum Bending Radius 46mm
Impedance @1~100MHz 100Ohm +/-15%
Maximum Conductor Resistance @20°C 60Ohm/km
Nominal Mutual Capacitance 52nF/km
Minimum Insulation Resistance 0.5GOhm×km
Attenuation @10MHz 7.6dB/100m
Attenuation @16MHz 10dB/100m
Attenuation @62.5MHz 26.5dB/100m
Attenuation @100MHz 41dB/100m
Next @10MHz 50.3dB
Next @16MHz 47.3dB
Next @62.5MHz 38.4dB
Next @100MHz 35.3dB
ACR @10MHz 42.7dB
ACR @16MHz 37.3dB
ACR @62.5MHz 11.9dB
ACR @100MHz 5.7dB
Flame Retardant IEC 60332-1
Halogen Free IEC 60754
Oil Resistant Yes
UV Resistant Yes

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm2 mm kg/km
2×2×0.64 6.5 54
