Single Core Flexible Power Cable, 0.6/1kV

Application

These cables are mainly for use in fixed applications.

Standard

  • AS/NZS 5000.1
  • AS1125
  • AS3808

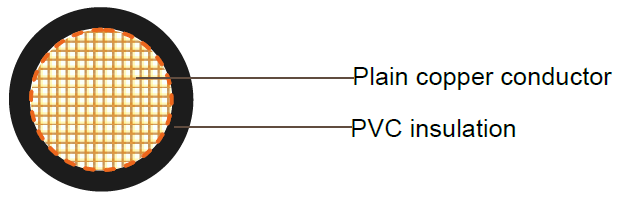

Cable Construction

Conductor Nominal 0.2mm stranded flexible plain copper wire to AS1125
Insulation V90HT PVC to AS3808
Colours Black, Red, Blue, White, GreenlYellow

Technical Characteristics

Australian Standard Industrial Cables(ASLV)

Conductor Size mm2 Electrical Resistance @20.C Current Ratìng' AMPS 2 single cores Voltage Orop mV 1Am at Max operatíng Temperature
mm2 Ohm/km Single Phase Three Phase
4 4.950 40 11 .20 9.71
6 3.300 51 7.50 6.49
10 1.910 69 4.45 3.86
16 1.210 92 2.80 2.43
25 0.780 125 1.78 1.54
35 0.554 155 1.29 1.12
50 0.386 185 0.96 0.83
70 0.272 240 0.62 0.59
95 0.206 295 0.51 0.44
120 0.161 345 0.41 0.36

Cable Parameter

Conductor Size No.of cores Conductor No./ OD Nominal Insulation Thickness Nominal O.D. Approx.cable weight
mm2 　 mm mm mm kg/100m
4 1 128/0.2 1.0 4.8 5.30
6 1 192/0.2 1.0 5.4 7.30
10 1 322/0.2 1.0 6.3 11.40
16 1 511/0.2 1.0 7.3 17.10
25 1 784/0.2 1.2 8.8 30.00
35 1 1120/0.2 1.2 10.2 37.50
50 1 1568/0.2 1.4 11 .9 51.00
70 1 2240/0.2 1.4 14.0 71 .50
95 1 3040/0.2 1.6 16.0 97.00
120 1 3800/02 1.6 17.5 119.10
