LSZH Flame Retardant CAT6 CWB/SWB/SWA Armoured Data Cables
FTX-CAT6U/UTP4P23LH CWB/SWB/SWA
FTX-CAT6F/UTP4P23LH CWB/SWB/SWA
FTX-CAT6SF/UTP4P23LH CWB/SWB/SWA
APPLICATION
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT,
100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables can be offered with
copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still
maintaining the flexibility of the cable.
STANDARDS
ISO/IEC 11801、 EN 50173、 ANSI/TIA/EIA 568
FIRE PERFORMANCE
| Flame Retardance (Single Vertical
Wire Test) |
IEC 60332-1-2; EN 60332-1-2 |
| Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test) |
IEC 60332-3-24; EN 60332-3-24 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1 |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2 |
| minimum Smoke Emission |
IEC 61034-2; EN 61034-2 |

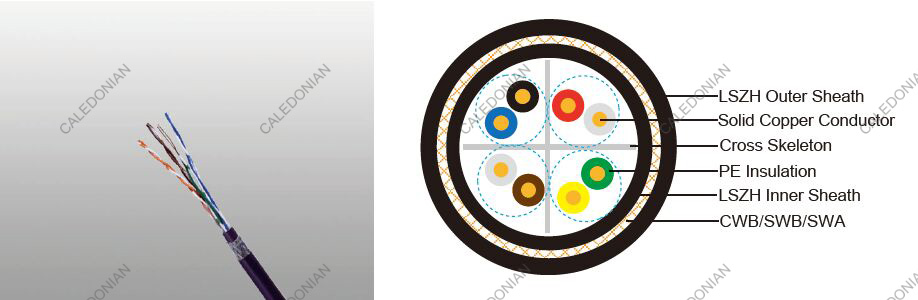

CABLE CONSTRUCTION
Conductors: 23AWG solid bare copper.
Insulation: PE .
Twinning: Two coloured insulated conductors twisted together to form a pair.
Inner Sheath: Thermoplastic LSZH compound, coloured black.
Armouring:
CWB: Copper Wire Braid
SWB: Steel Wire Braid
SWA: Steel Wire Armour
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option.

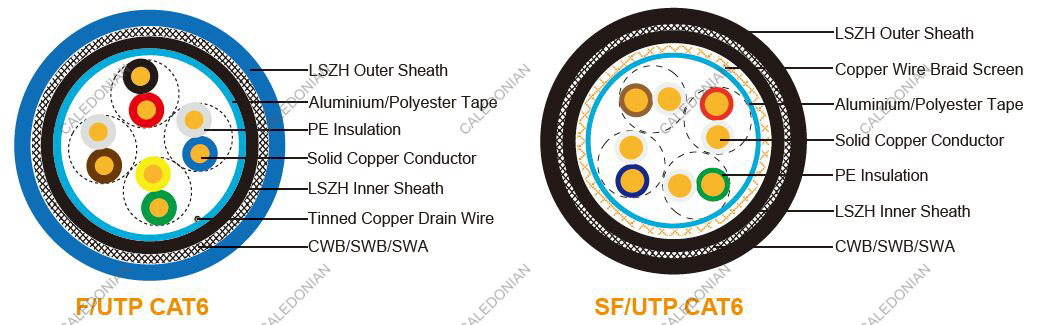

Cat6F/UTP: These cables have collective shielding of Aluminium/polyester tape with drain wire.
Cat6SF/UTP: These cables have double collective shielding of Aluminium/polyester tape & copper wire
braid.
Physical AND THERMAL PROPERTIES
Temperature range: -30°C - +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameter
Electrical Properties
| AWG |
|
23 |
| Nominal Conductor Diameter |
mm |
0.56/0.57/0.58 |
| Maximum DC Resistance@20°C |
Ω/100m |
9.38 |
| Maximum DCR Unbalance |
% |
3 |
| Maximum Mutual Capacitance |
pF/m |
5.8 |
| Maximum Capacitance Unbalance |
pF/100m |
30 |
| Characteristic Impedance@1-100MHz |
Ω |
100±15 |
| Maximum Propagation Delay Skew |
ns/100m |
18 |
TRANSMISSION PROPERTIES
| FREQ
MHz |
Attenuation dB/100m |
NEXT
dB |
PSNEXT
dB |
ELFEXT
dB/100m |
PSELFEXT
dB/100m |
RL
dB |
| 0.772 |
1.8 |
76.0 |
74.0 |
70.0 |
67.0 |
— |
| 1 |
2.0 |
74.3 |
72.3 |
67.8 |
64.8 |
20.0 |
| 4 |
3.8 |
65.3 |
63.3 |
55.7 |
52.7 |
23.0 |
| 8 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
24.5 |
| 10 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
25.0 |
| 16 |
7.6 |
56.3 |
54.3 |
43.7 |
40.7 |
25.0 |
| 20 |
8.5 |
54.8 |
52.8 |
41.7 |
38.7 |
25.0 |
| 25 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
24.3 |
| 31.25 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
23.6 |
| 62.5 |
15.4 |
47.4 |
45.4 |
31.8 |
28.8 |
21.5 |
| 100 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
20.1 |
| 155 |
25.2 |
41.5 |
39.5 |
23.9 |
20.9 |
18.8 |
| 200 |
29.0 |
39.8 |
37.8 |
21.7 |
18.7 |
18.0 |
| 250 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
17.3 |
CONSTRUCTION PARAMETERS
| Cable Code |
Construction No. of Elements×No.
of Cores in Element×Conductor Diameter |
Nominal Insulation Thickness |
Nominal Inner Sheath Thickness |
Nominal Outer Sheath Thickness |
Aprrox. Overall Diameter |
Nominal Weight |
| |
mm |
mm |
mm |
mm |
mm |
kg/km |
| FTX-CAT6U/UTP4P23LH CWB |
4×2×0.56/0.57 |
0.2 |
0.6 |
1.0 |
7.88 |
120 |
| FTX-CAT6U/UTP4P23LH SWB |
4×2×0.56/0.57 |
0.2 |
0.6 |
1.0 |
7.88 |
114 |
| FTX-CAT6U/UTP4P23LH SWA |
4×2×0.56/0.57 |
0.2 |
0.6 |
1.0 |
8.88 |
194 |
| FTX-CAT6F/UTP4P23LH CWB |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
8.48 |
131 |
| FTX-CAT6F/UTP4P23LH SWB |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
8.48 |
137 |
| FTX-CAT6F/UTP4P23LH SWA |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
9.48 |
218 |
| FTX-CAT6SF/UTP4P23LH CWB |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
8.96 |
159 |
| FTX-CAT6SF/UTP4P23LH SWB |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
8.96 |
153 |
| FTX-CAT6SF/UTP4P23LH SWA |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
9.96 |
247 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information.
