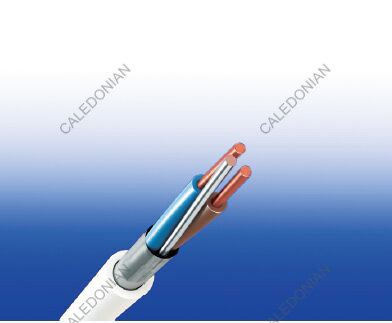

300/500V XLPE Insulated, LSZH Sheathed, Screened Power Cables to BS 8436 (2-4 Cores)
FTX200 05ROZ1-U/R/K (CU/XLPE/OSCR/LSZH 300/500V Class 1/2/5)
Applications
BS 8436 300/500V XLPE Insulated, LSZH Sheathed, Screened Power Cables are mainly used in power stations, mass transit underground passenger systems, airports,
petrochemical plants, hotels, hospitals and high-rise buildings.
Standard
Basic design adapted to BS 8436:2011
FIRE PERFORMANCE
| Flame Retardance (Single vertical wire or cable test) |
IEC 60332-1-2; EN 60332-1-2 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1 |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2 |
| Minimum Smoke Emission |
IEC 61034-2; EN 61034-2 |
Voltage Rating
300/500V

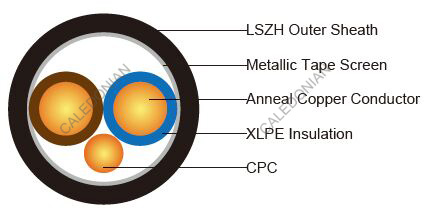

Construction
| Conductor |
Tinned annealed copper conductor, solid or stranded according to BS EN 60228 class 1, class 2
or class 5. |
| Insulation |
Thermosetting XLPE type GP 8 according to BS 7655-1.3. Crosslinked polyolefin material type
EI 5 according to EN 50363-5 or crosslinked elastomeric GP 4/GP 6 according to BS 7655-1.2 can be offered
as option. |
| CPC (Circuit Protective Conductor) |
Uninsulated tinned annealed copper conductor conforming to BS EN
13630:2002. |
| Screen: |
One or more metallic or laminated metallic tape(s) shall be applied, either longitudinally or helically
or as a combination of both, with the metallic element in contact with the uninsulated circuit protective conductor. |
| Outer Sheath |
LSZH type LTS 3 according to BS 7655-6.1. |
| Outer Sheath Option |
UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option. |
Colour Code
| Insulation Colour |
2-core + uninsulated circuit protective conductor: Brown, blue or brown, brown.
3-core + uninsulated circuit protective conductor: Brown, black, grey.
4-core + uninsulated circuit protective conductor: Blue, brown, black, grey. |
| Sheath Colour |
White; other colours can be offered upon request. |
PHYSICAL AND THERMAL PROPERTIES
| Maximum temperature range during operation: |
70°C |
| Maximum short circuit temperature (5 Seconds): |
250°C |
| Minimum bending radius: |
6 × Overall Diameter |
CONSTRUCTION PARAMETERS
| Conductor |
FTX200 05ROZ1-U/R/K |
| No. of Cores × Cross-sectional Area |
Conductor Class |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Approx. Overall Diameter |
Approx. Weight |
| No.×mm2 |
|
mm |
mm |
mm |
kg/km |
| 2×1.0 |
1/2/5 |
0.6 |
0.9 |
8.0 |
80 |
| 2×1.5 |
1/2/5 |
0.7 |
0.9 |
8.5 |
100 |
| 2×2.5 |
1/2/5 |
0.7 |
1.0 |
10.5 |
140 |
| 2×4 |
1/2/5 |
0.7 |
1.1 |
12.5 |
190 |
| 3×1.0 |
1/2/5 |
0.6 |
0.9 |
8.5 |
105 |
| 3×1.5 |
1/2/5 |
0.7 |
0.9 |
9.5 |
120 |
| 3×2.5 |
1/2/5 |
0.7 |
1.0 |
11.5 |
170 |
| 3×4 |
1/2/5 |
0.7 |
1.1 |
13.5 |
230 |
| 4×1.0 |
1/2/5 |
0.6 |
1.0 |
9.0 |
125 |
| 4×1.5 |
1/2/5 |
0.7 |
1.0 |
10.5 |
155 |
| 4×2.5 |
1/2/5 |
0.7 |
1.1 |
12.0 |
200 |
| 4×4 |
1/2/5 |
0.7 |
1.2 |
15.0 |
280 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information.
Electrical Properties
| Conductor Operating Temperature |
70°C |
| Ambient Temperature |
30°C |
Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4D2A
| cross-sectional area |
Ref. Method A (enclosed in conduit in thermally insulating wall etc) |
Ref. Method B (enclosed in conduit on a wall or in trunking etc) |
Ref. Method C (clipped direct) |
Ref. Method E (in free air or on a perforated cable tray etc. horizontal or vertical) |
| 1 two-core cable*, single-phase
a.c. or d.c. |
1 three-core
or 1 four- core cable*, three
-phase
a.c. |
1 two-core cable*, single- phase
a.c. or
d.c. |
1 three-core
or 1 four- core cable*, three
-phase
a.c. |
1 two-core cable*, single-phase
a.c. or d.c. |
1 three-core
or 1 four-core cable*, three
-phase
a.c. |
1 two-core cable*, single- phase
a.c. or d.c. |
1 three-core
or 1 four- core cable*, three
-phase
a.c. |
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
| mm2 |
A |
A |
A |
A |
A |
A |
A |
A |
| 1.0 |
11 |
10 |
13 |
11.5 |
15 |
13.5 |
17 |
14.5 |
| 1.5 |
14 |
13 |
16.5 |
15 |
19.5 |
17.5 |
22 |
18.5 |
| 2.5 |
18.5 |
17.5 |
23 |
20 |
27 |
24 |
30 |
25 |
| 4 |
25 |
23 |
30 |
27 |
36 |
32 |
40 |
34 |
Note: With or without a protective conductor.
Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4D2B
| Conductor cross- sectional area |
Two-core cable, d.c. |
Two-core cable, single-phase a.c. |
Three- or four core cable, three-phase a.c. |
| 1 |
2 |
3 |
4 |
| mm2 |
mV/A/m |
mV/A/m |
mV/A/m |
| 1.0 |
44 |
44 |
38 |
| 1.5 |
29 |
29 |
25 |
| 2.5 |
18 |
18 |
15 |
| 4 |
11 |
11 |
9.5 |
