Augmented Category 6 Cables (CAT6A)


LSZH Flame Retardant CAT6A CPR approved Data Cables



Applications

10Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155MbpsATM, 622 Mbps ATM, 1000Base-T, 10GBase-T

Standards

  • ISO / IEC 11801
  • EN50173
  • TIA / EIA 568-B

Product Construction Matrix

  U/UTP F/UTP U/FTP SF/UTP S/FTP
Conductor 23AWG Solid Plain Copper 23AWG Solid Plain Copper 23AWG Solid Plain Copper 23AWG Solid Plain Copper 23AWG Solid Plain Copper
Insulation PE PE PE PE PE
Screen Nil OverallAluminum Tape Screen IndividualAluminum Tape Screen OverallAluminum Tape Screen & Copper Wire Braid IndividualAluminum Tape Screen & Copper Wire Braid
Drain Wire Nil 1/0.5 mm 1/0.5 mm Nil Nil
Jacket PE/PVC/LSF/ LSZH/LFLSFROH PE/PVC/LSF/ LSZH PE/PVC/LSF/LSZH/LSFROH

Remark :

PE- Polyethylene

PVC- Polyvinyl Chloride

LSF- Low Smoke & Fume

LSZH- Low Smoke Zero Halogen

LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C)

PVC can be classified as CMX, CM, CMR and CMP.

Working Frequency

1 - 500 MHz

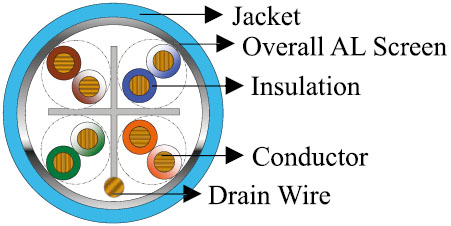

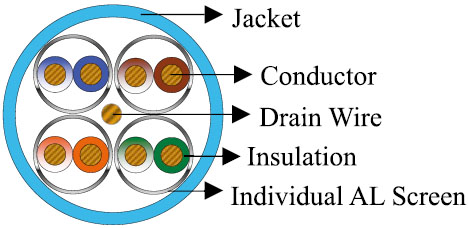

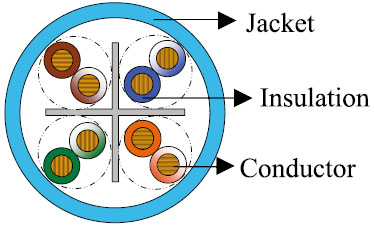

Cat6A U/UTP Cat6A F/UTP Cat6A U/FTP
Cat6A U/UTP Cat6A F/UTP Cat6A U/FTP

Technical Parameters

Characteristic Impedance 100±15Ω (1-250MHz); 100±22Ω (100-500Mhz)
Nominal Velocity of Propagation (NVP) CMX, CM, CMR, LSZH 69%; CMP 72%
Maximum Mutual Capacitance 5.6nF/100m
Maximum Capacitance Unbalance 330pF/100m
Maximum DC Resistance 7.5Ω/100m
Maximum Resistance Unbalance 3%
Maximum Propagation Delay Skew 30ns/100m (1-125MHz)
Maximum Propagation Delay 536 ns/100m @ 100MHz
Minimum Bending Radius 10 x Overall Diameter
Maximum Pulling Load 80N
Working Temperature -20℃ ~ +60℃
Storage Temperature -5℃ ~ +50℃
Flame Retardancy UL 1581 (CM Jacket)
UL 1666 (CMR Jacket)
UL 910 (CMP Jacket)
IEC 60332-1 (FRPVC & LSZH Jacket)
IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)

Product Certification

E222756

Product Categories

Construction Conductor Diameter Diameter Over Insulation Pairs Screen Overall Diameter Jacket
  mm mm     mm
U/UTP 0.57/0.58 1.02 4 Nil 8.5 PVC/LSZH
U/UTP 0.57/0.58 1.02 4 Nil 8.9 LSFROH
U/UTP 0.57/0.58 1.02 4 Nil 8.7 PE
F/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen 6.3 PVC/LSZH
F/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen 6.5 PE
U/FTP 0.57/0.58 1.02 4 Individual Aluminum Tape Screen 7.5 PVC/LSZH
SF/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen & Copper Wire Braid 6.6 PVC/LSZH
SF/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen & Copper Wire Braid 7.2 LSFROH
S/FTP 0.57/0.58 1.02 4 IndividualAluminum Tape Screen & Overall Copper Wire Braid 8.0 PVC/LSZH
S/FTP 0.57/0.58 1.02 4 IndividualAluminum Tape Screen & Overall Copper Wire Braid 8.4 LSFROH

Product Highlights

Provide excellent NEXT and attenuation performance beyond 500 MHz.

Support 10 Gigabit Ethernet application.

Meet the strict flame retardancy and environmental requirements in Europe and US.

Different jacket materials available for choice.

Special purpose cables can be offered according to customer request.

Different jacket color options available for choice.

UTP Cat 6A Transmission Properties

FREQ (MHz) NEXT (dB/100m) (Minimum/ Typical/ Standard) Value IL (dB/100m) RL (dB/100m) (Minimum/ Typical/ Standard) Value ACR (dB/100m) (Minimum/ Typical/ Standard) Value ELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSNEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSACR (dB/100m) (Minimum/ Typical/ Standard) Value PSELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value
1 74.3/95.0/74.3 2.0 20.0/28.0/20.0 72.2/94.0/72.2 67.8/92.0/67.8 72.3/92.0/72.3 70.2/90.0/70.2 64.8/85.0/64.8
4 65.3/88.0/65.3 3.7 23.0/30.0/23.0 61.4/88.0/61.4 55.8/80.0/55.8 63.3/83.0/63.3 59.5/80.0/59.5 52.8/73.0/52.8
8 60.8/85.0/60.8 5.3 24.5/33.0/24.5 55.4/83.0/55.4 49.7/75.0/49.7 58.8/80.0/58.8 53.5/76.0/53.5 46.7/70.0/46.7
10 59.3/83.0/59.3 5.9 25.0/36.0/25.0 53.3/78.0/53.3 47.8/72.0/47.8 57.3/77.0/57.3 51.3/72.0/51.3 44.8/65.0/44.8
16 56.2/80.0/56.2 7.6 25.0/36.0/25.0 48.6/74.0/48.6 43.7/68.0/43.7 54.2/74.0/54.2 46.6/68.0/46.6 40.7/61.0/40.7
20 54.8/78.0/54.8 8.3 25.0/36.0/25.0 46.3/71.0/46.3 41.8/65.0/41.8 52.8/73.0/52.8 44.3/66.0/44.3 38.8/59.0/38.8
25 53.3/77.0/53.3 9.5 24.3/35.0/24.3 43.8/69.0/43.8 39.8/63.0/39.8 51.3/71.0/51.3 41.8/63.0/41.8 36.8/57.0/36.8
31.25 51.9/76.0/51.9 10.4 23.6/34.0/23.6 41.1/67.0/41.1 37.9/62.0/37.9 49.9/70.0/49.9 39.1/60.0/39.1 34.9/55.0/34.9
62.5 47.4/70.0/47.4 14.9 21.5/33.5/21.5 31.9/57.0/31.9 31.9/56.0/31.9 45.4/65.0/45.4 29.9/51.0/29.9 28.9/49.0/28.9
100 44.3/68.0/44.3 19.0 20.1/33.0/20.1 24.4/50.0/24.4 27.8/52.0/27.8 42.3/62.0/42.3 22.4/44.0/22.4 24.8/45.0/24.8
200 39.8/65.0/39.8 27.4 18.0/31.0/18.0 10.6/38.0/10.6 21.8/46.0/21.8 37.8/58.0/37.8 8.6/32.0/8.6 18.8/39.0/18.8
250 38.3/62.0/38.3 31.0 17.3/30.5/17.3 5.3/33.0/5.3 19.8/44.0/19.8 36.3/56.0/36.3 3.3/27.0/3.3 16.8/37.0/16.8
300 37.1/61.0/37.1 34.2 16.8/29.0/16.8 0.5/29.0/0.5 18.3/42.0/18.3 35.1/55.0/35.1 -1.5/24.0/-1.5 15.3/35.0/15.3
350 36.1/60.0/36.1 37.1. 16.3/28.0/16.3 -3.8/26.0/-3.8 16.9/41.0/16.9 34.1/54.0/34.1 -5.8/20.0/-5.8 13.9/34.0/13.9
400 35.3/59.0/35.3 40.0 15.9/27.0/15.9 -7.9/21.0/-7.9 15.8/40.0/15.8 33.3/53.0/33.3 -9.9/15.0/-9.9 12.8/33.0/12.8
450 34.5/58.0/34.5 46.3 15.5/26.5/15.5 -10.5/18.0/-10.5 14.7/40.5/14.7 32.5/52.0/32.5 -12.5/11.0/-12.5 11.7/32.5/11.7
500 33.8/57.0/33.8 45.3 15.2/26.0/15.2 -15.3/15.0/-15.3 13.8/39.0/13.8 31.8/51.0/31.8 -17.3/9.0/-17.3 10.8/32.0/10.8
625 32.4/53.0/32.4 51.1 14.5/25.0/14.5 -23.1/31.0/-23.1 11.8/36.0/11.8 30.4/50.0/30.4 -25.1/5.0/-25.1 8.8/29.0/8.8

* Data for 250MHz above are for reference only

F/UTP & SF/UTP Cat 6A Transmission Properties

FREQ (MHz) NEXT (dB/100m) (Minimum/ Typical/ Standard) Value IL (dB/100m) RL (dB/100m) (Minimum/ Typical/ Standard) Value ACR (dB/100m) (Minimum/ Typical/ Standard) Value ELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSNEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSACR (dB/100m) (Minimum/ Typical/ Standard) Value PSELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value
1 74.3/86.0/74.3 2.0 20.0/33.0/20.0 72.2/84.0/72.2 67.8/91.0/67.8 72.3/81.0/72.3 70.2/80.5/70.2 64.8/84.0/64.8
4 65.3/77.0/65.3 3.7 23.0/35.5/23.0 61.4/73.0/61.4 55.8/79.0/55.8 63.3/72.0/63.3 59.5/70.0/59.5 52.8/72.0/52.8
8 60.8/75.0/60.8 5.3 24.5/36.0/24.5 55.4/70.0/55.4 49.7/74.0/49.7 58.8/69.0/58.8 53.5/66.0/53.5 46.7/69.0/46.7
10 59.3/71.0/59.3 5.9 25.0/38.0/25.0 53.3/66.0/53.3 47.8/71.0/47.8 57.3/65.0/57.3 51.3/62.0/51.3 44.8/64.0/44.8
16 56.2/68.0/56.2 7.6 25.0/35.2/25.0 48.6/61.0/48.6 43.7/67.0/43.7 54.2/62.0/54.2 46.6/58.0/46.6 40.7/60.0/40.7
20 54.8/67.0/54.8 8.3 25.0/35.0/25.0 46.3/59.0/46.3 41.8/65.0/41.8 52.8/61.0/52.8 44.3/55.0/44.3 38.8/59.0/38.8
25 53.3/65.0/53.3 9.5 24.3/34.0/24.3 43.8/57.0/43.8 39.8/63.0/39.8 51.3/60.0/51.3 41.8/53.0/41.8 36.8/57.0/36.8
31.25 51.9/64.0/51.9 10.4 23.6/33.1/23.6 41.1/54.0/41.1 37.9/61.0/37.9 49.9/54.0/49.9 39.1/50.0/39.1 34.9/54.0/34.9
62.5 47.4/59.0/47.4 14.9 21.5/32.2/21.5 31.9/44.0/31.9 31.9/55.0/31.9 45.4/58.0/45.4 29.9/41.0/29.9 28.9/48.0/28.9
100 44.3/56.0/44.3 19.0 20.1/31.6/20.1 24.4/38.0/24.4 27.8/51.0/27.8 42.3/50.0/42.3 22.4/34.0/22.4 24.8/44.0/24.8
200 39.8/52.0/39.8 27.4 18.0/29.8/18.0 10.6/25.0/10.6 21.8/45.0/21.8 37.8/45.0/37.8 8.6/20.5/8.6 18.8/38.0/18.8
250 38.3/50.0/38.3 31.0 17.3/28.7/17.3 5.3/19.0/5.3 19.8/43.0/19.8 36.3/44.0/36.3 3.3/15.0/3.3 16.8/36.0/16.8
300 37.1/49.0/37.1 34.2 16.8/28.0/16.8 0.5/14.0/0.5 18.3/38.0/18.3 35.1/43.0/35.1 -1.5/10.0/-1.5 15.3/31.0/15.3
350 36.1/48.0/36.1 37.1 16.3/27.5/16.3 -3.8/9.0/-3.8 16.9/37.0/16.9 34.1/41.0/34.1 -5.8/7.0/-5.8 13.9/30.0/13.9
400 35.3/47.0/35.3 40.0 15.9/27.0/15.9 -7.9/7.0/-7.9 15.8/36.0/15.8 33.3/40.0/33.3 -9.9/3.0/-9.9 12.8/29.0/12.8
450 34.5/47.0/34.5 46.3 15.5/26.5/15.5 -10.5/6.0/-10.5 14.7/35.0/14.7 32.5/39.0/32.5 -12.5/2.0/-12.5 11.7/27.5/11.7
500 33.8/47.0/33.8 45.3 15.2/26.0/15.2 -15.3/5.0/-15.3 13.8/34.0/13.8 31.8/38.0/31.8 -17.3/0.0/-17.3 10.8/27.0/10.8
625 32.4/45.0/32.4 51.1 14.5/25.0/14.5 -23.1/1.0/-23.1 11.8/33.0/11.8 30.4/37.0/30.4 -25.1/-3.9/-25.1 8.8/26.0/8.8

U/FTP & S/FTP Cat 6A Transmission Properties

FREQ (MHz) NEXT (dB/100m) (Minimum/ Typical/ Standard) Value IL (dB/100m) RL (dB/100m) (Minimum/ Typical/ Standard) Value ACR (dB/100m) (Minimum/ Typical/ Standard) Value ELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSNEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSACR (dB/100m) (Minimum/ Typical/ Standard) Value PSELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value
1 87.0/90.0/74.3 2.0 20.0/28.0/20.0 85.0/88.0/72.2 73.8/75.0/67.8 85.0/88.0/72.3 83.0/86.0/70.2 70.8/72.0/64.8
4 80.0/90.0/65.3 3.7 23.0/30.0/23.0 76.0/86.0/61.4 61.8/75.0/55.8 78.0/88.0/63.3 74.0/84.0/59.5 58.0/72.0/52.8
8 80.0/90.0/60.8 5.3 24.5/33.0/24.5 74.7/84.0/55.4 55.7/75.0/49.7 78.0/88.0/58.8 72.7/82.0/53.5 52.7/72.0/46.7
10 80.0/90.0/59.3 5.9 25.0/36.0/25.0 74.0/84.0/53.3 53.8/74.0/47.8 78.0/88.0/57.3 72.0/82.0/51.3 50.8/71.0/44.8
16 80.0/90.0/56.2 7.6 25.0/36.0/25.0 72.4/82.0/48.6 49.7/70.0/43.7 78.0/88.0/54.2 70.4/80.0/46.6 46.7/67.0/40.7
20 80.0/90.0/54.8 8.3 25.0/36.0/25.0 71.5/81.0/46.3 47.8/68.0/41.8 78.0/88.0/52.8 69.5/79.0/44.3 44.8/65.0/38.8
25 80.0/90.0/53.3 9.5 24.3/35.0/24.3 70.5/80.0/43.8 45.8/68.0/39.8 78.0/88.0/51.3 68.5/78.0/41.8 42.8/65.0/36.8
31.25 80.0/90.0/51.9 10.4 23.6/34.0/23.6 69.3/79.0/41.1 43.9/64.0/37.9 78.0/88.0/49.9 67.3/77.0/39.1 40.9/61.0/34.9
62.5 75.3/90.0/47.4 14.9 21.5/33.5/21.5 59.9/74.0/31.9 37.9/58.0/31.9 69.1/83.0/45.4 57.9/72.0/29.9 34.9/55.0/28.9
100 71.1/85.0/44.3 19.0 20.1/33.0/20.1 51.3/65.0/24.4 33.8/54.0/27.8 69.1/83.0/42.3 49.3/63.0/22.4 30.8/51.0/24.8
200 71.1/85.0/39.8 27.4 18.0/31.0/18.0 42.1/56.0/10.6 27.8/51.0/21.8 69.1/83.0/37.8 40.1/54.0/8.6 24.8/48.0/18.8
250 71.1/85.0/38.3 31.0 17.3/30.5/17.3 38.2/52.0/5.3 25.8/48.0/19.8 61.7/78.0/36.3 36.2/50.0/3.3 22.8/45.0/16.8
300 63.7/80.0/37.1 34.2 16.8/29.0/16.8 27.3/43.0/0.5 24.3/45.0/18.3 61.7/78.0/35.1 25.3/41.0/-1.5 21.2/42.0/15.3
350 63.7/80.0/36.1 37.1 16.3/28.0/16.3 23.9/40.0/-3.8 23.9/45.0/16.9 61.7/78.0/34.1 21.9/38.0/-5.8 19.9/42.0/13.9
400 63.7/80.0/35.3 40.0 15.9/27.0/15.9 20.7/37.0/-7.9 21.8/45.0/15.8 61.7/78.0/33.3 18.7/35.0/-9.9 19.7/42.0/12.8
450 63.7/80.0/34.5 46.3 15.5/26.5/15.5 17.4/33.0/-10.5 20.5/42.0/14.7 61.7/78.0/32.5 15.4/31.0/-12.5 17.5/39.0/11.7
500 63.7/80.0/33.8 45.3 15.2/26.0/15.2 14.8/31.0/-15.3 19.8/42.0/13.8 61.7/78.0/31.8 12.8/29.0/-17.3 16.8/39.0/10.8
625 60.0/70.0/32.4 51.1 14.5/25.0/14.5 5.5/15.5/-23.1 18.8/42.0/11.8 58.0/68.0/30.4 9.9/26.0/-25.1 16.0/39.0/8.8

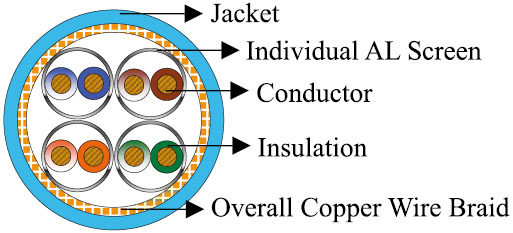

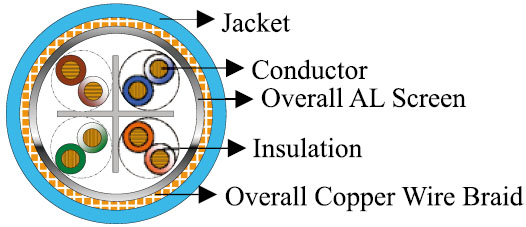

Cat6A S/FTP Cat6A SF/UTP
