RG59 Coaxial Cable + 2C0.75 NYM Cable + 1P18AWG Instrumentation Cable + 1C18AWG Grounding Cable + Messenger Wire Unarmored PVC Elastomer Sheathed Elevator Composite Cable

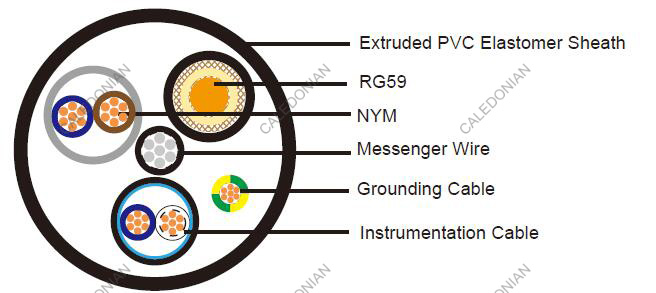

Construction:
75Ohm RG59 Coaxial Cable
| Conductor |
Copper Clad Steel Conductor |
| Insulation |
Polyethylene |
| Shield |
Braid of bare copper wire, coverage ≥ 85% |
| Sheath |
PVC elastomer |
| Sheath Color |
Black |
2C0.75MMSQ NYM 500V
| Conductor |
Flexible stranded copper |
| Insulation |
PVC. Thickness 0.6mm |
| Insulation Color |
Blue and Brown |
| Sheath |
PVC elastomer. Thickness 0.6mm. Gray color |
1P18AWG Instrumentation Cable 300V
| Conductor |
Flexible stranded copper |
| Insulation |
XLPE. Thickness 0.6mm |
| Insulation Color |
Blue and White |
| Shield |
Braid of bare copper wire, coverage ≥ 85% |
| Sheath |
PVC elastomer. Thickness 0.6mm |
| Sheath Color |
Black |
1C18AWG Grounding Cable 300V
| Conductor |
Flexible stranded copper conductor |
| Insulation |
PVC. Thickness 0.6mm |
| Insultion Color |
Green/Yellow |
Messenger Wire
| Conductor |
Stranded steel wire |
| Insulation |
PVC. Thickness 0.6mm |
| Insultion Color |
Black |
Element Assembly
| Outer Sheath |
Extruded PVC elastomer. Thickness 2.5mm. |
| Overall Diameter |
Nominal outer diameter 21.0±2.0mm |
| Sheath Color |
Black. Other color available as per request |
Electrical and Physical Properties @20°C:
RG59 Coaxial Cable
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 7.5dB/100m @50MHz
2C0.75MMSQ NYM Cable
Working Voltage: 500V
Test Voltage: 2000V
Insulation Resistance: >20 MOhmxkm
1P18AWG Instrumentation Cable
Working Voltage: 300V
Test Voltage: 1500V
Insulation Resistance: ≥1000 MOhmxkm
