FLRYW-A Germany Standard Automotive Cable Single-core

Application and Description:

This PVC insulated single-core cable is used as low-tension electric wire for automobiles.

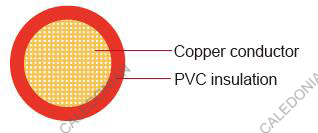

Cable Construction:

FLRYW-A Germany Standard Automotive Cable

Conductor:Cu-ETP1 bare according to DIN EN 13602
Insulation:PVC
Standard:ISO 6722 Class C

Special properties:

Heat resistant cable
Suitable for application inside the engine compartment

Technical Parameters:

Operating temperature: –50°C to +125°C

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x0.35 7/0.26 0.8 54.4 0.20 1.2 1.3 5
1x0.50 19/0.19 1.0 37.1 0.22 1.4 1.6 7
1x0.75 19/0.23 1.2 24.7 0.24 1.7 1.9 9
1x1.00 19/0.26 1.35 18.5 0.24 1.9 2.1 11
1x1.25 19/0.30 1.7 14.9 0.24 2.1 2.3 12
1x1.50 19/0.32 1.7 12.7 0.24 2.2 2.4 16
1 x2.00 19/0.38 2.0 9.42 0.28 2.5 2.8 22

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
