FLR5Y-B Germany Standard Automotive Cable Single-core

Application and Description:

This PTFE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

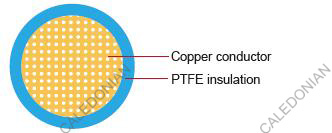

Cable Construction:

FLR5Y-B Germany Standard Automotive Cable

Conductor:Silver or Nickel plated copper according to DIN EN 13602
Insulation:PTFE
Standard:ISO 6722 Class H

Special properties:

Excellent resistance to chemicals

Technical Parameters:

Operating temperature: –90°C to +260°C

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x 0.35 12/0.21 0.9 87.9 0.20 1.25 1.35 5
1x 0. 5 16/0.21 1.0 56.8 0.22 1.4 1.6 6
1x 0. 75 24/0.21 1.2 38.6 0.24 1.7 1.9 9
1x1 32/0.21 1.4 25.7 0.24 1.75 1.95 11
1x 1.5 30/0.26 1.7 19.3 0.24 2.1 2.3 16
1x 2.5 50/0.26 2.2 13.2 0.28 2.5 2.8 26
1x 4 56/0.31 2.75 4.91 0.32 3.05 3.35 40
1x 6 84/0.31 3.4 3.27 0.32 3.85 4.15 61

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
