FLR13Y11Y Germany Standard Automotive Cable

Application:

This TPE-Einsulated ,TPE-U sheathed low tension multi-cores cable is used for ABS systems, it has excellent abrasion resistance and better resistance to bending fatigue.

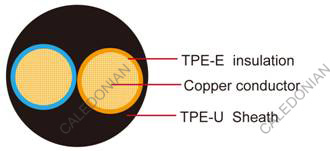

Construction:

Conductor:Cu-ETP1 according to DIN EN13602
Insulation: Thermoplasticpolyester (TPE-E)
Sheath:Thermoplastic polyurethane (TPE-U)
Standard Compliance:ISO 6722 Class C

Technical Parameters:

Operating temperature:–40 °C to +125 °C

  Conductor Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter Max. Electrical resistance at 20℃ Max. thickness wall Nom. Diameter of core Sheath thickness Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm mm mm Kg/km
2 x 0.50 28 /0.16 1.00 37.10 0.20 1.40 0.60 3.85 4.15 22
2 x 0.50 28 /0.16 1.00 37.10 0.20 1.40 0.85 4.35 4.65 27
2 x 0.50 28 /0.16 1.00 37.10 0.35 1.70 0.80 4.80 5.20 32
2 x 0.60 80/0.11 1.20 24.70 0.20 1.45 0.80 4.35 4.65 28
2 x 0.75 42/0.16 1.20 27.10 0.30 1.80 1.30 6.00 6.40 48
2 x 0.75 96 /0.10 1.20 27.10 0.30 1.80 1.30 6.00 6.40 62

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
