450/750V LSZH Insulated, Non-sheathed Power Cables (Single Core)
FTX100 07Z1-R (CU/LSZH 450/750V Class 2)

FFX200 05SOZ1-U (PH30/60) (CU/SR/OSCR/LSZH 300/500V Class 1)

APPLICATION

This cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

STANDARDS

Basic design to BS 7211

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482- 332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic Gases NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING

450/750V

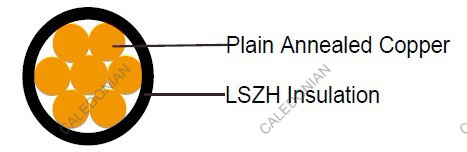

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation: LSZH compound

COLOUR CODE

Insulation Colour : Natural
Sheath Colour: Black (other colors upon request)

Physical AND THERMAL PROPERTIES

Temperature Range During Operation: -30°C ~ 90°C
Temperature Range during Installation : -5°C ~ 50°C
Minimum Bending Radius : 6 x OD

Electrical PROPERTIES

Dielectric Test:

2500 V r.m.s. x 5’ ( core / core )

Insulation Resistance

500 MΩ x km ( at 20°C )

Short circuit Temperature

250°C ( up to 5 secs )

CONSTRUCTION PARAMETERS

Cable Code Conductor
No. of Core X Cross Section No./Nominal Diameter of Strands Nominal Insulation Thickness Nominal Overall Diameter Approx. Weight
  Noxmm2 No./mm mm mm kg/km
FTX100 07Z1-R 1G1.5 1x1.5 7/0.53 0.7 3.1 23
FTX100 07Z1-R 1G2.5 1x2.5 7/0.67 0.8 3.7 35
FTX100 07Z1-R 1G4 1x4 7/0.85 0.8 4.3 52
FTX100 07Z1-R 1G6 1x6 7/1.04 0.8 4.8 73
FTX100 07Z1-R 1G10 1x10 7/1.35 1.0 6.2 120
FTX100 07Z1-R 1G16 1x16 7/1.70 1.0 7.2 180
FTX100 07Z1-R 1G25 1x25 7/2.24 1.2 9.0 285
FTX100 07Z1-R 1G35 1x35 19/1.53 1.2 10.2 375
FTX100 07Z1-R 1G50 1x50 19/1.78 1.4 12.0 510
FTX100 07Z1-R 1G70 1x70 19/2.14 1.4 14.0 720
FTX100 07Z1-R 1G95 1x95 19/2.52 1.6 16.0 995
FTX100 07Z1-R 1G120 1x120 37/2.03 1.6 18.0 1230
FTX100 07Z1-R 1G150 1x150 37/2.25 1.8 20.0 1520
FTX100 07Z1-R 1G185 1x185 37/2.52 2.0 22.0 1900
FTX100 07Z1-R 1G240 1x240 61/2.25 2.2 25.0 2480
FTX100 07Z1-R 1G300 1x300 61/2.52 2.4 28.0 3100
FTX100 07Z1-R 1G400 1x400 61.2.85 2.6 31.5 3950
FTX100 07Z1-R 1G500 1x500 61/3.20 2.8 35.0 4950
FTX100 07Z1-R 1G630 1x630 127/2.52 2.8 39.0 6360

Electrical PROPERTIES

Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor crosssectional Reference Method 4 (enclosed in conduit in thermally insulating wall etc) Reference Method 3 (enclosed in conduit on a wall or in trunking etc) Reference Method 1 (clipped direct) Reference Method 11 (on a perforated cable tray, horizontal or vertical) Reference Method 12 (free air)
Horizontal flat spaced Vertical flat spaced Trefoil
  2 cables, singlephase a.c. or d.c. 3 or 4 cables, 3-phase a.c. 2 cables, singlephase a.c. or d.c. 3 or 4 cables, 3-phase a.c. 2 cables, singlephase a.c. or d.c. flat and touching 3 or 4 cables, 3-phase a.c. flat and touching or trefoil 2 cables, singlephase a.c. or d.c. or flat and touching 3 or 4 cables, 3-phase a.c. flat and touching or trefoil 2 cables, singlephase a.c. or d.c. or 3 c ables three phase 2 cables, singlephase a.c. or d.c. or 3 cables three phase 3 cables, trefoil 3- phase a.c.
1 2 3 4 5 6 7 8 9 10 11 12
mm2 A A A A A A A A A A A
1.5 18 17 22 19 25 23 - - - - -
2.5 24 23 30 26 34 31 - - - - -
4 33 30 40 35 46 41 - - - - -
6 43 39 51 45 59 54 - - - - -
10 58 53 71 63 81 74 - - - - -
16 76 70 95 85 109 99 - - - - -
25 100 91 126 111 143 130 158 140 183 163 138
35 125 111 156 138 176 161 195 176 226 203 171
50 149 135 189 168 228 209 293 215 274 246 209
70 189 170 240 214 293 268 308 279 351 318 270
95 228 205 290 259 355 326 375 341 426 389 330
120 263 235 336 299 413 379 436 398 495 453 385
150 300 270 375 328 476 436 505 461 570 524 445
185 341 306 426 370 545 500 579 530 651 600 511
240 400 358 500 433 644 590 686 630 769 711 606
300 459 410 573 493 743 681 794 730 886 824 701
400 - - 684 584 868 793 915 849 1065 994 820
500 - - 783 666 990 904 1044 973 1228 1150 936
630 - - 900 764 1130 1033 1191 1115 1423 1338 1069

Voltage Drop (Per Amp Per Meter)

Nominal Cross Section Area 2 cables d.c. 2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c.
Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) Ref. Methods 1 and 11 (clipped direct or on trays touching) Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) Ref. Methods 1, Ref. Methods 1 and 11
11 and 12 (in trefoil) (Flat and touching)
1 2 3 4 5 6 7
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
1.5 31 31 27 27 27 27
2.5 19 19 16 16 16 16
4 33 12 10 10 10 10
6 7.8 7.9 6.8 6.8 6.8 6.8
10 4.7 4.7 4.7 4 4 4
16 2.9 2.9 2.9 2.5 2.5 2.5
    r x z r x z r x z r x z r x z
25 1.85 1.85 0.31 1.9 1.85 0.19 1.85 1.6 0.27 1.65 1.6 0.165 1.6 1.6 0.19 1.6
35 1.35 1.35 0.29 1.35 1.35 0.18 1.35 1.15 0.25 1.15 1.15 0.155 1.5 1.15 0.18 1.15
50 0.99 1 0.29 1.05 0.99 0.18 1 0.87 0.25 0.9 0.86 0.155 0.87 0.86 0.18 0.87
70 0.68 0.7 0.28 0.75 0.68 0.175 0.71 0.6 0.24 0.65 0.59 0.15 0.61 0.59 0.175 0.62
95 0.49 0.51 0.27 0.58 0.49 0.17 0.52 0.44 0.23 0.5 0.43 0.145 0.45 0.43 0.17 0.46
120 0.39 0.41 0.26 0.48 0.39 0.165 0.43 0.35 0.23 0.42 0.34 0.14 0.37 0.34 0.165 0.38
150 0.32 0.33 0.26 0.43 0.32 0.165 0.36 0.29 0.23 0.37 0.28 0.14 0.31 0.28 0.165 0.32
185 0.25 0.27 0.26 0.37 0.26 0.165 0.3 0.23 0.23 0.32 0.22 0.14 0.26 0.22 0.165 0.28
240 0.19 0.21 0.26 0.33 0.2 0.16 0.25 0.185 0.22 0.29 0.17 0.14 0.22 0.17 0.165 0.24
300 0.155 0.175 0.25 0.31 0.16 0.16 0.22 0.15 0.22 0.27 0.14 0.14 0.195 0.135 0.16 0.21
400 0.12 0.14 0.25 0.29 0.13 0.155 0.2 0.125 0.22 0.25 0.11 0.135 0.175 0.11 0.16 0.195
500 0.093 0.12 0.25 0.28 0.105 0.155 0.185 0.1 0.22 0.24 0.09 0.135 0.16 0.088 0.16 0.18
630 0.072 0.1 0.25 0.27 0.086 0.155 0.175 0.088 0.21 0.23 0.074 0.135 0.15 0.071 0.16 0.17
Note :
r = conductor resistance at operating temperature
x = reactance
z = impedance
