Twisted Single Pair PFA Insulated

Applications

These cables are used with thermocouples for temperature measurements.

Specification

  • Conductor: Solid or stranded. Material is according to thermocouple type.
    Insulation: PFA polymer
    Screen: Aluminum tape
    Drain wire: Tinned copper
    Outer sheath: PFA polymer
    Construction: Round
    Color code: According to IEC 60584-3

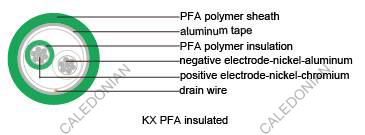

  Twisted Single Pair PFA Insulated Thermocouple Cables

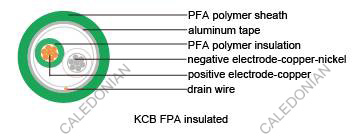

  Twisted Single Pair PFA Insulated Thermocouple Cables



K Type

AWG(mm) Insulation Material Screen Material Sheath
Material
Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
24 (0.51) PFA Polymer Aluminum tape PFA Polymer 260 2.7 13.4
24 (7/0.2) PFA Polymer Aluminum tape PFA Polymer 260 2.9 13.8
20 (0.81) PFA Polymer Aluminum tape PFA Polymer 260 3.7 30.0
20 (7/0.32) PFA Polymer Aluminum tape PFA Polymer 260 3.8 30.3
