400℉/204℃ EPDM/EPDM Round Electrical Submersible Pump Cable

Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standards

  • IEEE Std. 1018
  • API RP 11S5
  • API RP 11S6

Construction

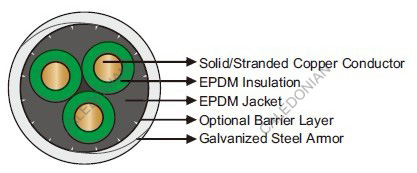

400℉/204℃ EPDM/EPDM Round Electrical Submersible Pump Cable

  • Conductor: Solid/stranded copper conductor.
  • Insulation: EPDM insulation.
  • Optional Barrier: Tape, braid, tape and braid, or extruded barrier, used for fluid protection and hoop strength.
  • Jacket: EPDM rubber.
  • Armor: Galvanized steel.

Dimensions and Weight

3KV

Cable Type Conductor Size Conductor O.D. Insulation
Thickness
Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYEEY-204-3kV-3G10S - 10 0.14 3.556 0.075 1.9 1.03 26.1 694 1032
QYEEY-204-3kV-3G6 6 13.3 0.162 4.115 0.075 1.9 1.09 27.8 798 1187
QYEEY-204-3kV-3G16S - 16 0.178 4.521 0.075 1.9 1.14 29.0 880 1309
QYEEY-204-3kV-3G4 4 21.1 0.204 5.182 0.075 1.9 1.22 31.0 1024 1524
QYEEY-204-3kV-3G25S - 25 0.222 5.639 0.075 1.9 1.27 32.3 1132 1685
QYEEY-204-3kV-3G2 2 33.6 0.258 6.553 0.075 1.9 1.38 35.1 1368 2036
QYEEY-204-3kV-3G1 1 42.4 0.289 7.341 0.075 1.9 1.47 37.4 1593 2370
QYEEY-204-3kV-3G1/0 1/0 53.5 0.368 9.347 0.075 1.9 1.71 43.4 2254 3354
QYEEY-204-3kV-3G2/0 2/0 67.4 0.414 10.516 0.075 1.9 1.84 46.8 2697 4014

5KV

Cable Type Conductor Size Conductor O.D. Insulation
Thickness
Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYEEY-204-5kV-3G10S - 10 0.14 3.556 0.09 2.3 1.12 28.5 760 1131
QYEEY-204-5kV-3G6 6 13.3 0.162 4.115 0.09 2.3 1.19 30.2 867 1290
QYEEY-204-5kV-3G16S - 16 0.178 4.521 0.09 2.3 1.24 31.4 950 1414
QYEEY-204-5kV-3G4 4 21.1 0.204 5.182 0.09 2.3 1.31 33.4 1097 1632
QYEEY-204-5kV-3G25S - 25 0.222 5.639 0.09 2.3 1.37 34.7 1207 1796
QYEEY-204-5kV-3G2 2 33.6 0.258 6.553 0.09 2.3 1.47 37.4 1446 2152
QYEEY-204-5kV-3G1 1 42.4 0.289 7.341 0.09 2.3 1.57 39.8 1674 2491
QYEEY-204-5kV-3G1/0 1/0 53.5 0.368 9.347 0.09 2.3 1.80 45.7 2342 3485
QYEEY-204-5kV-3G2/0 2/0 67.4 0.414 10.516 0.09 2.3 1.94 49.2 2790 4152
