284℉/140℃ EPDM/NBR Round Electrical Submersible Pump Cable

Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standards

  • IEEE Std. 1018
  • API RP 11S5
  • API RP 11S6

Construction

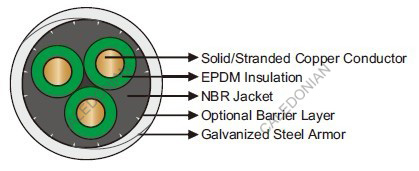

284℉/140℃ EPDM/NBR Round Electrical Submersible Pump Cable

  • Conductor: Solid/stranded copper conductor.
  • Insulation: EPDM insulation.
  • Optional Barrier: Tape, braid, tape and braid, or extruded barrier, used for fluid protection and hoop strength.
  • Jacket: Oil-resistant nitrile rubber.
  • Armor: Galvanized steel.

Dimensions and Weight

3KV

Cable Type Conductor Size Conductor O.D. Insulation
Thickness
Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYENY-140-3kV-3G10S - 10 0.14 3.556 0.075 1.9 1.03 26.1 661 983
QYENY-140-3kV-3G6 6 13.3 0.162 4.115 0.075 1.9 1.09 27.8 763 1135
QYENY-140-3kV-3G16S - 16 0.178 4.521 0.075 1.9 1.14 29.0 843 1254
QYENY-140-3kV-3G4 4 21.1 0.204 5.182 0.075 1.9 1.22 31.0 985 1465
QYENY-140-3kV-3G25S - 25 0.222 5.639 0.075 1.9 1.27 32.3 1091 1623
QYENY-140-3kV-3G2 2 33.6 0.258 6.553 0.075 1.9 1.38 35.1 1323 1969
QYENY-140-3kV-3G1 1 42.4 0.289 7.341 0.075 1.9 1.47 37.4 1544 2298
QYENY-140-3kV-3G1/0 1/0 53.5 0.368 9.347 0.075 1.9 1.71 43.4 2197 3269
QYENY-140-3kV-3G2/0 2/0 67.4 0.414 10.516 0.075 1.9 1.84 46.8 2635 3922

5KV

Cable Type Conductor Size Conductor
O.D.
Insulation
Thickness
Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYENY-140-5kV-3G10S - 10 0.14 3.556 0.09 2.3 1.12 28.5 724 1077
QYENY-140-5kV-3G6 6 13.3 0.162 4.115 0.09 2.3 1.19 30.2 828 1232
QYENY-140-5kV-3G16S - 16 0.178 4.521 0.09 2.3 1.24 31.4 910 1354
QYENY-140-5kV-3G4 4 21.1 0.204 5.182 0.09 2.3 1.31 33.4 1054 1568
QYENY-140-5kV-3G25S - 25 0.222 5.639 0.09 2.3 1.37 34.7 1162 1729
QYENY-140-5kV-3G2 2 33.6 0.258 6.553 0.09 2.3 1.47 37.4 1397 2079
QYENY-140-5kV-3G1 1 42.4 0.289 7.341 0.09 2.3 1.57 39.8 1622 2413
QYENY-140-5kV-3G1/0 1/0 53.5 0.368 9.347 0.09 2.3 1.80 45.7 2281 3395
QYENY-140-5kV-3G2/0 2/0 67.4 0.414 10.516 0.09 2.3 1.94 49.2 2725 4055
