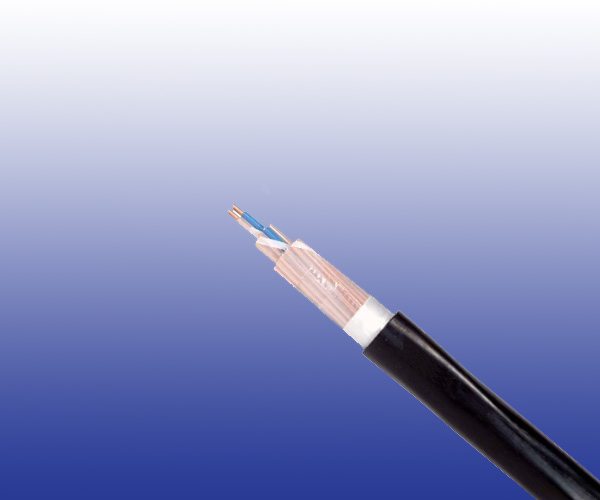

A-2Y2Yv S(H115)/S(H145)/S(H95) Railway Cables

Railway Cables A-2Y2Yv S(H115)/S(H145)/S(H95)

Application

The A-2Y2Yv S(H115)/S(H145)/S(H95) Railway Cables are designed for general uses in protective devises in railways signalling networks, and are suitable for installation in ducts.

Standards

● Dlk 1.013.107y
● Dlk 1.013.108y (for 1.4/1.8mm conductor H95 type)
● Dlk 1.013.110y

Construction

Conductors
Solid annealed copper, 0.9, 1.4 or 1.8 mm nominal diameter.

Insulation
Solid polyethylene.

Stranding
Single conductors are helically stranded in concentric layers. Cables from 14 conductors on, have two
extra conductors with perforated insulation (surveillance conductors).

Core Wrapping
Plastic tape(s) with overlapping.

Outer Sheath
Low density polyethylene.

Type Codes

A– outdoor cable
2Y- solid PE conductor insulation
2Yv- PE sheath with increased wall thickness
S- signal cable
LG- layer stranding
H(n)- operating capacity

Electrical Characteristics at 20℃

Nominal Conductor Diameter mm 0.9 1.4 1.8
Maximum Conductor Resistance Ω/km 28.9 11.9 7.2
Minimum Insulation Resistance @500 V DC (1min) MΩ.km 10000 10000 10000
Maximum Conductor Capacitance @800Hz (AC) nF/km 115 145/95* 145/95*
Dielectric Strength, conductor to conductor (DC voltage 1min) V 3535 3535 3535
Surveillance Conductors
Loop resistance, maximum Ω/km 190 190 190
Insulation resistance
- dry cable core, minimum MΩ.km 1000 1000 1000
- wet cable core, maximum KΩ.km 30 30 30
Operating Voltage AC/DC V 420/600 420/600 420/600
Test Voltage@50 Hz 1 min
Core to Core Veff 2500 2500 2500
Core to Screen Veff 2500 2500 2500

*The value“ 95” is only for cables with 1.4/1.8mm conductors according to Dlk 1.013.108y.

Mechanical and Thermal Properties

Minimum Bending Radius: 7.5×OD
Temperature Range: -40℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)

Dimensions And Weight

A-2Y2Yv n×1×0.9 S(H115)

Cable Code Number of
conductors
(n)
Nominal Sheath
Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
0.9mm Conductor, 1.55mm Insulated Wire
RS107y-2Y2Yv-2C0.9-S(H115) 2 2.0 9.0 60
RS107y-2Y2Yv-4C0.9-S(H115) 4 2.0 9.0 75
RS107y-2Y2Yv-7C0.9-S(H115) 7 2.0 11.0 100
RS107y-2Y2Yv-10C0.9-S(H115) 10 2.0 12.0 130
RS107y-2Y2Yv-14C0.9-S(H115) 14 2.0 13.0 170
RS107y-2Y2Yv-20C0.9-S(H115) 20 2.0 14.0 220
RS107y-2Y2Yv-24C0.9-S(H115) 24 2.0 15.0 260
RS107y-2Y2Yv-30C0.9-S(H115) 30 2.2 16.0 310
RS107y-2Y2Yv-40C0.9-S(H115) 40 2.2 17.0 380
RS107y-2Y2Yv-50C0.9-S(H115) 50 2.2 19.0 460
RS107y-2Y2Yv-60C0.9-S(H115) 60 2.2 20.0 540
RS107y-2Y2Yv-80C0.9-S(H115) 80 2.2 22.0 690
RS107y-2Y2Yv-100C0.9-S(H115) 100 2.2 25.0 850
RS107y-2Y2Yv-120C0.9-S(H115) 120 2.2 26.0 990
RS107y-2Y2Yv-140C0.9-S(H115) 140 2.2 28.0 1150
RS107y-2Y2Yv-160C0.9-S(H115) 160 2.2 29.0 1260
RS107y-2Y2Yv-180C0.9-S(H115) 180 2.2 32.0 1460
RS107y-2Y2Yv-200C0.9-S(H115) 200 2.2 32.0 1600

A-2Y2Yv n×1×1.4/1.8 S(H145)

Cable Code Number of
conductors
(n)
Nominal Sheath
Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
1.4mm Conductor, 2.2mm Insulated Wire
RS107y-2Y2Yv-4C1.4-S(H145) 4 2.0 11.0 120
RS107y-2Y2Yv-7C1.4-S(H145) 7 2.0 12.0 180
RS107y-2Y2Yv-10C1.4-S(H145) 10 2.0 15.0 240
RS107y-2Y2Yv-14C1.4-S(H145) 14 2.2 16.0 320
RS107y-2Y2Yv-20C1.4-S(H145) 20 2.2 17.0 430
RS107y-2Y2Yv-24C1.4-S(H145) 24 2.2 19.0 500
RS107y-2Y2Yv-30C1.4-S(H145) 30 2.2 20.0 600
RS107y-2Y2Yv-40C1.4-S(H145) 40 2.2 22.0 770
RS107y-2Y2Yv-50C1.4-S(H145) 50 2.2 24.0 950
RS107y-2Y2Yv-60C1.4-S(H145) 60 2.2 26.0 1120
RS107y-2Y2Yv-80C1.4-S(H145) 80 2.2 29.0 1450
RS107y-2Y2Yv-100C1.4-S(H145) 100 2.2 33.0 1810
RS107y-2Y2Yv-120C1.4-S(H145) 120 2.2 35.0 2140
RS107y-2Y2Yv-140C1.4-S(H145) 140 2.2 37.0 2470
RS107y-2Y2Yv-160C1.4-S(H145) 160 2.2 39.0 2800
RS107y-2Y2Yv-180C1.4-S(H145) 180 2.2 42.0 3140
RS107y-2Y2Yv-200C1.4-S(H145) 200 2.2 43.0 3460
1.8mm Conductor, 2.7mm Insulated Wire
RS107y-2Y2Yv-4C1.8-S(H145) 4 2.0 12.0 170
RS107y-2Y2Yv-7C1.8-S(H145) 7 2.0 14.0 260
RS107y-2Y2Yv-10C1.8-S(H145) 10 2.0 17.0 355
RS107y-2Y2Yv-14C1.8-S(H145) 14 2.2 18.0 475
RS107y-2Y2Yv-20C1.8-S(H145) 20 2.2 21.0 655
RS107y-2Y2Yv-24C1.8-S(H145) 24 2.2 22.0 760
RS107y-2Y2Yv-30C1.8-S(H145) 30 2.2 24.0 930
RS107y-2Y2Yv-40C1.8-S(H145) 40 2.2 27.0 1210
RS107y-2Y2Yv-50C1.8-S(H145) 50 2.2 29.0 1480
RS107y-2Y2Yv-60C1.8-S(H145) 60 2.2 31.0 1760
RS107y-2Y2Yv-80C1.8-S(H145) 80 2.2 35.0 2310
RS107y-2Y2Yv-100C1.8-S(H145) 100 2.2 40.0 2860
RS107y-2Y2Yv-120C1.8-S(H145) 120 2.2 42.0 3390
RS107y-2Y2Yv-140C1.8-S(H145) 140 2.2 46.0 3930
RS107y-2Y2Yv-160C1.8-S(H145) 160 2.2 49.0 4500
RS107y-2Y2Yv-180C1.8-S(H145) 180 2.2 52.0 5100
RS107y-2Y2Yv-200C1.8-S(H145) 200 2.2 53.0 5600

A-2Y2Yv n×1×1.4/1.8 S(H95)

Cable Code Number of
conductors
(n)
Nominal Sheath
Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
1.4mm Conductor, 2.7mm Insulated Wire
RS108y-2Y2Yv-10C1.4-S(H95) 10 2.0 16.0 270
RS108y-2Y2Yv-14C1.4-S(H95) 14 2.0 18.0 350
RS108y-2Y2Yv-20C1.4-S(H95) 20 2.0 20.0 470
RS108y-2Y2Yv-30C1.4-S(H95) 30 2.2 24.0 670
RS108y-2Y2Yv-50C1.4-S(H95) 50 2.2 29.0 1050
1.8mm Conductor, 3.4mm Insulated Wire
RS108y-2Y2Yv-10C1.8-S(H95) 10 2.0 19.0 400
RS108y-2Y2Yv-14C1.8-S(H95) 14 2.2 21.0 540
RS108y-2Y2Yv-20C1.8-S(H95) 20 2.2 24.0 730
RS108y-2Y2Yv-30C1.8-S(H95) 30 2.2 28.0 1050
RS108y-2Y2Yv-50C1.8-S(H95) 50 2.2 36.0 1700
