AJ-2Y2YDB2Y S(H115)/S(H145)/S(H95) Railway Cables

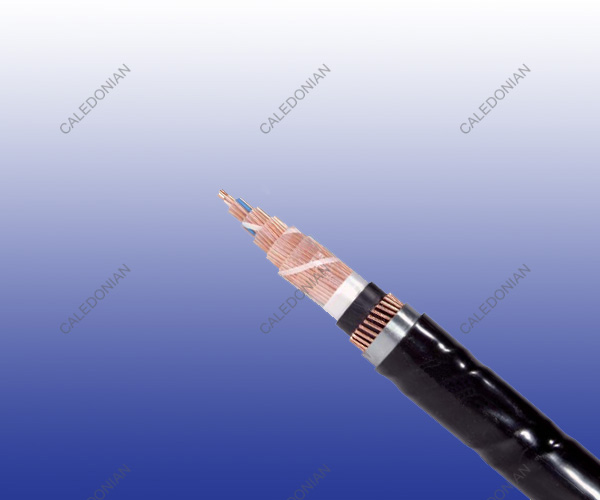

Railway Cables AJ-2Y2YDB2Y S(H115)/S(H145)/S(H95)

Application

The AJ-2Y2YDB2Y S(H115)/S(H145)/S(H95) Railway Cables are designed for transmission of service tensions up to 600 VDC /420 Veff AC100Hz in railway signalling networks, and are suitable for installation in ducts or laying directly into the ground.

Standards

● Dlk 1.013.107y
● Dlk 1.013.107y
● Dlk 1.013.108y (for 1.4/1.8mm conductor H95 type)
● Dlk 1.013.110y

Construction

Conductors
Solid annealed copper, 0.9, 1.4 or 1.8 mm nominal diameter.

Insulation
Solid polyethylene.

Stranding
Single conductors are helically stranded in concentric layers. Cables from 14 conductors on have two extra conductors of 0.5mm with perforated insulation (surveillance conductors).

Core Wrapping
Plastic tape(s) with overlapping.

Inner Sheath
Low density polyethylene.

Electrostatic Shield
One layer of helically applied copper wires (0.9, 1.2, 1.4 or 1.8mm).

Electromagnetic Shield
Two helically applied steel tapes (0.5 or 0.8mm thick, depending on required reduction
factor).

Outer Sheath
Low density polyethylene.

Type Codes

AJ- outdoor cable with protection against inductive infl uences
2Y- solid PE conductor insulation
2Y- inner PE sheath
D- copper wire concentric screen
B- steel tape armor
2Y- outer PE sheath
S- signal cable
LG- layer stranding
H (n)- operating capacity

Electrical Characteristics at 20℃

Nominal Conductor Diameter mm 0.9 1.4 1.8
Maximum Conductor Resistance Ω/km 28.9 11.9 7.2
Minimum Insulation Resistance @500 V DC (1min) MΩ.km 10000 10000 10000
Maximum Mutual Capacitance @800Hz (AC) nF/km 15 145/95* 145/95*
Dielectric Strength, conductor to conductor (DC voltage 1min) V 3535 3535 3535
Surveillance Conductors
Loop resistance, maximum Ω/km 190 190 190
Insulation resistance
- dry cable core, minimum MΩ.km 1000 1000 1000
- wet cable core, maximum KΩ.km 30 30 30
Nominal Reduction Factor @ 100 V/km, 16 2/3 Hz
rk 401 series 0.15 0.15 0.15
rk 501 series 0.35 0.35 0.35
rk 601 series 0.55 0.55 0.55
Operating Voltage AC/DC V 420/600 420/600 420/600
Test Voltage@50 Hz 1 min
Core to Core Veff 2500 2500 2500
Core to Screen Veff 2500 2500 2500

*The value“ 95” is only for cables with 1.4/1.8mm conductors according to Dlk 1.013.108y.

Mechanical and Thermal Properties

Minimum Bending Radius: 10×OD
Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)

Dimensions And Weight

AJ-2Y2YDB2Y n×1×0.9 S(H115)

Cable Code Number of
conductors
(n)
Nominal Sheath Thickness
mm
Nominal Overall
Diameter
mm
Nominal
Weight
Inner Outer kg/km
Inner Outer
0.9mm Conductor, 1.55mm Insulated Wire rk 601 Series
RS107y-2Y2YDB2Y-10C0.9-S(H115)-R6 10 1.3 1.2 19.0 520
RS107y-2Y2YDB2Y-20C0.9-S(H115)-R6 20 1.3 1.2 20.0 650
RS107y-2Y2YDB2Y-30C0.9-S(H115)-R6 30 1.3 1.2 22.0 780
RS107y-2Y2YDB2Y-50C0.9-S(H115)-R6 50 1.3 1.2 25.0 1010
RS107y-2Y2YDB2Y-80C0.9-S(H115)-R6 80 1.3 1.2 29.0 1330
RS107y-2Y2YDB2Y-120C0.9-S(H115)-R6 120 1.3 1.3 32.0 1740
RS107y-2Y2YDB2Y-160C0.9-S(H115)-R6 160 1.3 1.3 35.0 2310
RS107y-2Y2YDB2Y-200C0.9-S(H115)-R6 200 1.3 1.3 38.0 2520
0.9mm Conductor, 1.55mm Insulated Wire rk 501 Series
RS107y-2Y2YDB2Y-10C0.9-S(H115)-R5 10 1.3 1.2 19.0 600
RS107y-2Y2YDB2Y-20C0.9-S(H115)-R5 20 1.3 1.2 20.0 740
RS107y-2Y2YDB2Y-30C0.9-S(H115)-R5 30 1.3 1.2 22.0 890
RS107y-2Y2YDB2Y-50C0.9-S(H115)-R5 50 1.3 1.3 25.0 1150
RS107y-2Y2YDB2Y-80C0.9-S(H115)-R5 80 1.3 1.3 29.0 1480
RS107y-2Y2YDB2Y-120C0.9-S(H115)-R5 120 1.5 1.3 32.0 1910
RS107y-2Y2YDB2Y-160C0.9-S(H115)-R5 160 1.5 1.3 35.0 2530
RS107y-2Y2YDB2Y-200C0.9-S(H115)-R5 200 1.5 1.5 38.0 2730

AJ-2Y2YDB2Y n×1×1.4/1.8 S(H145)

Cable Code

Number of
conductors
(n)
Nominal Sheath Thickness
mm
Nominal Overall
Diameter
mm
Nominal
Weight
Inner Outer kg/km
Inner Outer
1.4mm Conductor, 2.2mm Insulated Wire rk 601 Series
RS107y-2Y2YDB2Y-10C1.4-S(H145)-R6 10 1.3 1.2 21 670
RS107y-2Y2YDB2Y-20C1.4-S(H145)-R6 20 1.3 1.2 23.5 940
RS107y-2Y2YDB2Y-30C1.4-S(H145)-R6 30 1.3 1.2 27 1180
RS107y-2Y2YDB2Y-50C1.4-S(H145)-R6 50 1.3 1.2 31 1650
RS107y-2Y2YDB2Y-80C1.4-S(H145)-R6 80 1.3 1.2 35 2270
RS107y-2Y2YDB2Y-120C1.4-S(H145)-R6 120 1.3 1.3 41 3110
RS107y-2Y2YDB2Y-160C1.4-S(H145)-R6 160 1.3 1.3 46 3900
RS107y-2Y2YDB2Y-200C1.4-S(H145)-R6 200 1.3 1.3 49 4670
1.4mm Conductor, 2.2mm Insulated Wire rk 501 Series
RS107y-2Y2YDB2Y-10C1.4-S(H145)-R5 10 1.3 1.2 21 780
RS107y-2Y2YDB2Y-20C1.4-S(H145)-R5 20 1.3 1.2 23.5 1070
RS107y-2Y2YDB2Y-30C1.4-S(H145)-R5 30 1.3 1.2 26 1320
RS107y-2Y2YDB2Y-50C1.4-S(H145)-R5 50 1.3 1.3 31 1810
RS107y-2Y2YDB2Y-80C1.4-S(H145)-R5 80 1.3 1.3 35 2460
RS107y-2Y2YDB2Y-120C1.4-S(H145)-R5 120 1.5 1.3 42 3380
RS107y-2Y2YDB2Y-160C1.4-S(H145)-R5 160 1.5 1.3 46 4190
RS107y-2Y2YDB2Y-200C1.4-S(H145)-R5 200 1.5 1.5 49 5000
1.4mm Conductor, 2.2mm Insulated Wire rk 401 Series
RS107y-2Y2YDB2Y-10C1.4-S(H145)-R4 10 1.3 1.2 23 960
RS107y-2Y2YDB2Y-20C1.4-S(H145)-R4 20 1.3 1.2 25.6 1260
RS107y-2Y2YDB2Y-30C1.4-S(H145)-R4 30 1.3 1.3 28 1940
RS107y-2Y2YDB2Y-50C1.4-S(H145)-R4 50 1.3 1.3 33 2450
RS107y-2Y2YDB2Y-80C1.4-S(H145)-R4 80 1.5 1.3 38 3280
RS107y-2Y2YDB2Y-120C1.4-S(H145)-R4 120 1.5 1.5 44 4290
RS107y-2Y2YDB2Y-160C1.4-S(H145)-R4 160 1.5 1.5 48 5200
RS107y-2Y2YDB2Y-200C1.4-S(H145)-R4 200 1.5 1.5 52 6060
1.8mm Conductor, 2.7mm Insulated Wire rk 601 Series
RS107y-2Y2YDB2Y-10C1.8-S(H145)-R6 10 1.3 1.2 23 850
RS107y-2Y2YDB2Y-20C1.8-S(H145)-R6 20 1.3 1.2 27 1260
RS107y-2Y2YDB2Y-30C1.8-S(H145)-R6 30 1.3 1.3 30 1620
RS107y-2Y2YDB2Y-50C1.8-S(H145)-R6 50 1.3 1.3 36 2080
RS107y-2Y2YDB2Y-80C1.8-S(H145)-R6 80 1.5 1.3 41 3310
RS107y-2Y2YDB2Y-120C1.8-S(H145)-R6 120 1.5 1.5 48 4570
RS107y-2Y2YDB2Y-160C1.8-S(H145)-R6 160 1.5 1.5 54 5950
RS107y-2Y2YDB2Y-200C1.8-S(H145)-R6 200 1.5 1.5 58 6970
1.8mm Conductor, 2.7mm Insulated Wire rk 501 Series
RS107y-2Y2YDB2Y-10C1.8-S(H145)-R5 10 1.3 1.2 23 970
RS107y-2Y2YDB2Y-20C1.8-S(H145)-R5 20 1.3 1.2 27 1410
RS107y-2Y2YDB2Y-30C1.8-S(H145)-R5 30 1.3 1.3 30 1780
RS107y-2Y2YDB2Y-50C1.8-S(H145)-R5 50 1.3 1.3 36 2520
RS107y-2Y2YDB2Y-80C1.8-S(H145)-R5 80 1.5 1.3 42 3570
RS107y-2Y2YDB2Y-120C1.8-S(H145)-R5 120 1.5 1.5 49 5950
RS107y-2Y2YDB2Y-160C1.8-S(H145)-R5 160 1.5 1.5 55 6170
RS107y-2Y2YDB2Y-200C1.8-S(H145)-R5 200 1.5 1.5 59 7380
1.8mm Conductor, 2.7mm Insulated Wire rk 401 Series
RS107y-2Y2YDB2Y-10C1.8-S(H145)-R4 10 1.3 1.2 25 1160
RS107y-2Y2YDB2Y-20C1.8-S(H145)-R4 20 1.3 1.2 29 1700
RS107y-2Y2YDB2Y-30C1.8-S(H145)-R4 30 1.3 1.3 32 2400
RS107y-2Y2YDB2Y-50C1.8-S(H145)-R4 50 1.3 1.3 38 3350
RS107y-2Y2YDB2Y-80C1.8-S(H145)-R4 80 1.5 1.3 44 3310
RS107y-2Y2YDB2Y-120C1.8-S(H145)-R4 120 1.5 1.5 51 4900
RS107y-2Y2YDB2Y-160C1.8-S(H145)-R4 160 1.5 1.5 57 7340
RS107y-2Y2YDB2Y-200C1.8-S(H145)-R4 200 1.5 1.5 61 8650

AJ-2Y2YDB2Y n×1×1.4/1.8 S(H95)

Cable Code Number of
conductors
(n)
Nominal Sheath
Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
Inner Outer
1.4mm Conductor, 2.7mm Insulated Wire rk 501 Series
RS108y-2Y2YDB2Y-10C1.4-S(H95)-R5 10 1.3 1.2 22.0 900
RS108y-2Y2YDB2Y-14C1.4-S(H95)-R5 14 1.3 1.2 24.0 1010
RS108y-2Y2YDB2Y-20C1.4-S(H95)-R5 20 1.3 1.2 27.0 1220
RS108y-2Y2YDB2Y-30C1.4-S(H95)-R5 30 1.3 1.2 30.0 1520
RS108y-2Y2YDB2Y-50C1.4-S(H95)-R5 50 1.3 1.3 35.0 2090
1.4mm Conductor, 2.7mm Insulated Wire rk 401 Series
RS108y-2Y2YDB2Y-30C1.4-S(H95)-R4 30 1.3 1.2 32.0 2150
RS108y-2Y2YDB2Y-50C1.4-S(H95)-R4 50 1.3 1.3 38.0 2900
1.8mm Conductor, 3.4mm Insulated Wire rk 501 Series
RS108y-2Y2YDB2Y-10C1.8-S(H95)-R5 10 1.3 1.2 25.0 1130
RS108y-2Y2YDB2Y-14C1.8-S(H95)-R5 14 1.3 1.2 27.0 1330
RS108y-2Y2YDB2Y-20C1.8-S(H95)-R5 20 1.3 1.2 30.0 1620
RS108y-2Y2YDB2Y-30C1.8-S(H95)-R5 30 1.3 1.3 34.0 2340
RS108y-2Y2YDB2Y-50C1.8-S(H95)-R5 50 1.3 1.3 42.0 3020
1.8mm Conductor, 3.4mm Insulated Wire rk 401 Series
RS108y-2Y2YDB2Y-30C1.8-S(H95)-R4 30 1.3 1.3 37.0 2880
RS108y-2Y2YDB2Y-50C1.8-S(H95)-R4 50 1.3 1.3 44.0 3950
