KX Series Coaxial Cables 50 Ω/75 Ω IEC60092 STANDARD Cables

Application

These IEC60092 STANDARD Offshore & Marine radio frequency cables are suitable for high frequency data transmission (communication equipment, radar, instrumentation equipment) and video signal transmission.

Standards

In line with MIL C17
IEC 60092-360
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

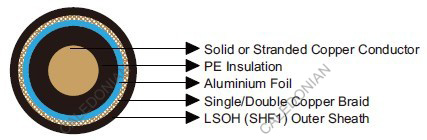

Construction

Conductors: Solid or stranded CCS (Bare copper plated steel), BC (Bare copper).
Insulation: PE.
Fire Barriers: Aluminium foil.
Screen: Single or double braid. Bare, tinned or silvered copper
Outer Sheath: LSOH (SHF1).

Electrical Characteristics

    KX 3B KX 6A KX 8
Characteristic Impedance Ω 50 75 75
Capacitance pF/m 106 72 72
Velocity % 66 66 66
Attenuation @200MHz dB/100m 45 20 12

Mechanical and Thermal Properties

Bending Radius for Fixed Installations: 10×OD
Temperature Range: -30℃ ~ +60℃

Dimensions and Weight

50 Ω

Part No. Cable Type Conductor
Stranding
No.×mm 		Conductor Diameter mm Dielectric Diameter mm Nominal Overall
Diameter mm 		Nominal Weight kg/km
MLN-KX3B KX 3B 7×0.16 CCS 0.48 1.50 2.55 10

75 Ω

Part No. Cable Type Conductor
Stranding
No.×mm 		Conductor Diameter mm Dielectric Diameter mm Nominal Overall
Diameter mm 		Nominal Weight kg/km
MLN-KX6A KX 6A 7×0.20 BC 0.6 3.7 6.1 57
MLN-KX8 KX 8 7×0.40 BC 1.2 7.25 10.3 145
