Fire Resistant Individual and Overall Screened, Armoured Fire Resistant Instrumentation Cables (Multipair)

RE-2X(st)HSWAH PiMF...CI

APPLICATION

The armoured LSZH sheathed Fire Resistant cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

Basic design to BS EN 50288-7 (formerly BS 5308)

FIRE PERFORMANCE

Circuit Integrity	IEC 60331-21; BS 6387 CWZ (Optional); BS EN 50200 (PH30/PH60/PH120)
Flame Retardance (Single Vertical Wire or cable test)	IEC 60332-1-2; EN 60332-1-2
Halogen Free	IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2
Minimum Smoke Emission	IEC 61034-2; EN 61034-2

VOLTAGE RATING

300, 500V

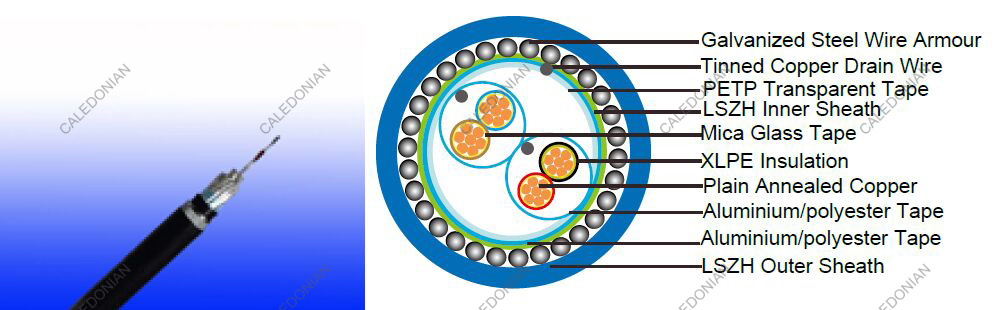

CABLE CONSTRUCTION

Conductor: Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and class 5.
Fire Barrier: Mica glass tape.
Insulation: Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.
Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm (≤1.5mm2) or 150mm (for 2.5mm2).
Individual Screen: Aluminium/polyester tape is applied over the laid up pairs with metallic side down in contact with tinned copper drain wire, 0.5mm².
Binder tape: PETP transparent tape.
Overall Screen:Aluminium/polyester tape is applied over the laid up pairs with metallic side down in contact with tinned copper drain wire, 0.5mm².
Inner Sheath: Thermoplastic LSZH compound.
Amouring: Galvanized steel wire armour.
Outer Sheath: Thermoplastic LSZH compound according to EN 50290-2-22.
Outer Sheath Option: Thermoplastic LSZH compound. UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour: Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
Outer sheath: Black. Other colours can be offered upon request.

Physical AND THERMAL PROPERTIES

Temperature range during operation: -30°C - +90°C
Temperature range during installation: -5°C - +50°C
Maximum short circuit temperature (5 Seconds): 250°C
Minimum bending radius: 10 x Overall Diameter

Electrical Properties

300v

conductor area size		mm2	0.5	0.75	1.0	1.5
Insulation thickness (nominal)		mm	0.4	0.4	0.4	0.5
Insulation thickness (minimum)		mm	0.26	0.26	0.26	0.35
conductor resistance (20°c)		ohm/km	36.7	25.0	18.5	12.3
Minimum Insulation resistance (20°c)		Mohm/km	1000
Maximum Mutual capacitance		nf/km	250
capacitance Unbalance		pf/500m	500
Maximum l/R (ratio)		μH/Ω	25	25	25	40
operating Voltage		V	300
Dielectric strength for 1 minute	ac	V	≥1000
	Dc	V	≥2000

500v

conductor area size		mm2	0.5	0.75	1.0	1.5	2.5
Insulation thickness (nominal)		mm	0.6	0.6	0.6	0.6	0.7
Insulation thickness (minimum)		mm	0.44	0.44	0.44	0.44	0.53
conductor resistance (20°c)		ohm/km	36.7	25.0	18.5	12.3	7.4
Minimum Insulation resistance (20°c)		Mohm/km	1000
Maximum Mutual capacitance		nf/km	250
capacitance Unbalance		pf/500m	500
Maximum l/R (ratio)		μH/Ω	25	25	25	40	60
operating Voltage		V	500
Dielectric strength for 1 minute	ac	V	≥2000
	Dc	V	≥3000

CONSTRUCTION PARAMETERS

300V

conductor		RE-2X(St)HSWAH PiMF...CI
no. of core X cross section	class of conductor	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness	Nominal Overall Diameter	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km
0.5mm2
2x2x0.5	2	0.4	1.0	0.9	1.4	16.6	490
3x2x0.5	2	0.4	1.0	0.9	1.4	17.3	546
4x2x0.5	2	0.4	1.1	0.9	1.5	19.0	644
5x2x0.5	2	0.4	1.1	1.25	1.5	20.7	851
8x2x0.5	2	0.4	1.1	1.25	1.5	24.0	1067
10x2x0.5	2	0.4	1.2	1.25	1.6	28.0	1309
12x2x0.5	2	0.4	1.2	1.25	1.6	28.6	1403
16x2x0.5	2	0.4	1.3	1.6	1.7	32.4	1888
20x2x0.5	2	0.4	1.4	1.6	1.7	34.8	2152
24x2x0.5	2	0.4	1.5	1.6	1.8	39.3	2542
0.75mm2
2x2x0.75	2	0.4	1.0	0.9	1.4	17.2	524
3x2x0.75	2	0.4	1.1	0.9	1.5	18.4	613
4x2x0.75	2	0.4	1.1	0.9	1.5	19.8	697
5x2x0.75	2	0.4	1.2	1.25	1.5	22.2	937
8x2x0.75	2	0.4	1.2	1.25	1.6	25.5	1197
10x2x0.75	2	0.4	1.3	1.25	1.6	29.3	1451
12x2x0.75	2	0.4	1.3	1.25	1.6	30.0	1578
16x2x0.75	2	0.4	1.4	1.6	1.7	34.1	2095
20x2x0.75	2	0.4	1.5	1.6	1.8	36.8	2415
24x2x0.75	2	0.4	1.5	1.6	1.8	41.3	2800
1.0mm2
2x2x1.0	2	0.4	1.0	0.9	1.4	18.0	567
3x2x1.0	2	0.4	1.1	0.9	1.5	19.2	667
4x2x1.0	2	0.4	1.2	1.25	1.5	21.6	909
5x2x1.0	2	0.4	1.2	1.25	1.6	23.4	1036
8x2x1.0	2	0.4	1.2	1.25	1.6	26.7	1319
10x2x1.0	2	0.4	1.3	1.6	1.7	31.7	1821
12x2x1.0	2	0.4	1.4	1.6	1.7	32.8	1982
16x2x1.0	2	0.4	1.5	1.6	1.8	36.2	2372
20x2x1.0	2	0.4	1.5	1.6	1.8	38.8	2692
24x2x1.0	2	0.4	1.6	2.0	1.9	43.9	3516
1.5mm2
2x2x1.5	2	0.5	1.1	1.25	1.5	20.7	805
3x2x1.5	2	0.5	1.2	1.25	1.6	22.1	937
4x2x1.5	2	0.5	1.2	1.25	1.6	23.8	1072
5x2x1.5	2	0.5	1.3	1.25	1.6	25.8	1232
8x2x1.5	2	0.5	1.3	1.25	1.7	29.9	1604
10x2x1.5	2	0.5	1.4	1.6	1.8	35.5	2198
12x2x1.5	2	0.5	1.5	1.6	1.8	36.7	2400
16x2x1.5	2	0.5	1.6	1.6	1.9	40.6	2887
20x2x1.5	2	0.5	1.7	2.0	2.0	43.9	3679
24x2x1.5	2	0.5	1.8	2.0	2.0	49.5	4311

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information.
500v

conductor		RE-2X(St)HSWAH...CI
no. of core X cross section	class of conductor	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness	Nominal Overall Diameter	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km
0.5mm2
2x2x0.5	2	0.6	1.2	0.9	1.5	18.5	571
3x2x0.5	2	0.6	1.2	0.9	1.6	19.5	645
4x2x0.5	2	0.6	1.2	1.25	1.6	21.9	879
5x2x0.5	2	0.6	1.3	1.25	1.7	23.7	1002
8x2x0.5	2	0.6	1.4	1.25	1.8	27.5	1299
10x2x0.5	2	0.6	1.6	1.6	1.9	32.7	1811
12x2x0.5	2	0.6	1.6	1.6	1.9	33.7	1943
16x2x0.5	2	0.6	1.8	1.6	2.0	37.2	2306
20x2x0.5	2	0.6	1.9	1.6	2.1	40.1	2638
24x2x0.5	2	0.6	2.0	2	2.3	46.3	3490
0.75mm2
2x2x0.75	2	0.6	1.2	0.9	1.6	19.2	611
3x2x0.75	2	0.6	1.2	1.25	1.6	21.0	820
4x2x0.75	2	0.6	1.3	1.25	1.6	22.7	944
5x2x0.75	2	0.6	1.3	1.25	1.7	24.7	1079
8x2x0.75	2	0.6	1.5	1.25	1.8	28.7	1408
10x2x0.75	2	0.6	1.7	1.6	1.9	34.2	1960
12x2x0.75	2	0.6	1.7	1.6	2.0	35.2	2109
16x2x0.75	2	0.6	1.8	1.6	2.1	38.9	2511
20x2x0.75	2	0.6	1.9	1.6	2.2	42.0	2882
24x2x0.75	2	0.6	2.1	2	2.3	48.5	3804
1.0mm2
2x2x1.0	2	0.6	1.2	1.25	1.6	20.8	785
3x2x1.0	2	0.6	1.2	1.25	1.6	21.9	887
4x2x1.0	2	0.6	1.3	1.25	1.7	23.8	1025
5x2x1.0	2	0.6	1.4	1.25	1.7	25.8	1175
8x2x1.0	2	0.6	1.5	1.25	1.8	30.1	1544
10x2x1.0	2	0.6	1.7	1.6	2.0	35.9	2145
12x2x1.0	2	0.6	1.7	1.6	2.0	37.0	2315
16x2x1.0	2	0.6	1.9	1.6	2.1	40.9	2769
20x2x1.0	2	0.6	2.0	2	2.2	45.0	3522
24x2x1.0	2	0.6	2.2	2	2.4	51.1	4197
1.5mm2
2x2x1.5	2	0.6	1.2	1.25	1.6	21.9	859
3x2x1.5	2	0.6	1.3	1.25	1.7	23.1	977
4x2x1.5	2	0.6	1.4	1.25	1.7	25.1	1135
5x2x1.5	2	0.6	1.4	1.25	1.8	27.3	1307
8x2x1.5	2	0.6	1.6	1.6	1.9	32.7	1940
10x2x1.5	2	0.6	1.8	1.6	2.1	38.1	2400
12x2x1.5	2	0.6	1.8	1.6	2.1	39.3	2600
16x2x1.5	2	0.6	2.0	2	2.2	44.3	3455
20x2x1.5	2	0.6	2.1	2	2.3	47.8	3972
24x2x1.5	2	0.6	2.3	2.5	2.5	55.4	5262
2.5mm2
2x2x2.5	2	0.7	1.3	1.25	1.7	24.4	1028
3x2x2.5	2	0.7	1.4	1.25	1.7	25.8	1182
4x2x2.5	2	0.7	1.5	1.25	1.8	28.1	1386
5x2x2.5	2	0.7	1.6	1.25	1.9	30.7	1605
8x2x2.5	2	0.7	1.7	1.6	2.0	36.8	2395
10x2x2.5	2	0.7	2.0	2	2.2	44.0	3303
12x2x2.5	2	0.7	2.0	2	2.2	45.3	3582
16x2x2.5	2	0.7	2.2	2	2.4	50.2	4311
20x2x2.5	2	0.7	2.3	2.5	2.5	55.4	5506
24x2x2.5	2	0.7	2.6	2.5	2.7	63.0	6573

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information.
