Fire Resistant Overall Screened, Armoured Fire Resistant Instrumentation Cables (Multicore)

RE-2X(St)HSWAH...CI

Fire Resistant Overall Screened, Armoured Instrumentation Cables (Multicore)

Fire Resistant Cable APPLICATION

The armoured LSZH sheathed Fire Resistant Instrumentation cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

Fire Resistant Cable STANDARDS

Basic design to BS EN 50288-7 (formerly BS 5308)

Fire Resistant Cable FIRE PERFORMANCE

Circuit Integrity IEC 60331-21; BS 6387 CWZ (Optional); BS EN 50200 (PH30/PH60/PH120)
Flame Retardance (Single Vertical Wire or cable test) IEC 60332-1-2; EN 60332-1-2
Halogen Free IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
Minimum Smoke Emission IEC 61034-2; EN 61034-2

Fire Resistant Cable VOLTAGE RATING

300, 500V

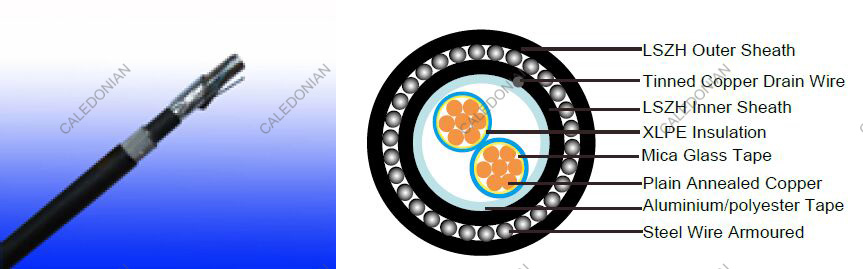

Fire Resistant Cable CONSTRUCTION

Conductor: Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and class 5.
Fire Barrier: Mica glass tape.
Insulation: Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.
Overall Screen: Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm².
Inner Sheath: Thermoplastic LSZH compound.
Armouring: Galvanised steel wire.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

Fire Resistant Cable COLOUR CODE

Insulation Colour: Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
Outer sheath: Black. Other colours can be offered upon request.

Fire Resistant Cable Physical AND THERMAL PROPERTIES

Temperature range during operation: -30°C - +90°C
Temperature range fixed installation: -5°C - +50°C
Maximum short circuit temperature (5 Seconds): 160°C
Minimum bending radius: 10 x Overall Diameter

Fire Resistant Cable Electrical Properties

300v

conductor area size mm2 0.5 0.75 1.0 1.5
Insulation thickness (nominal) mm 0.4 0.4 0.4 0.5
Insulation thickness (minimum) mm 0.26 0.26 0.26 0.35
conductor resistance (20°c) ohm/km 36.7 25.0 18.5 12.3
Minimum Insulation resistance (20°c) Mohm/km 1000
Maximum Mutual capacitance nf/km 250
capacitance Unbalance pf/500m 500
Maximum l/R (ratio) μH/Ω 25 25 25 40
operating Voltage V 300
Dielectric strength for 1 minute ac V ≥1000
Dc V ≥2000

500v

conductor area size mm2 0.5 0.75 1.0 1.5 2.5
Insulation thickness (nominal) mm 0.6 0.6 0.6 0.6 0.7
Insulation thickness (minimum) mm 0.44 0.44 0.44 0.44 0.53
conductor resistance (20°c) ohm/km 36.7 25.0 18.5 12.3 7.4
Minimum Insulation resistance (20°c) Mohm/km 1000
Maximum Mutual capacitance nf/km 250
capacitance Unbalance pf/500m 500
Maximum l/R (ratio) μH/Ω 25 25 25 40 60
operating Voltage V 500
Dielectric strength for 1 minute ac V ≥2000
Dc V ≥3000

CONSTRUCTION PARAMETERS

300V

conductor RE-2X(St)HSWAH...CI
no. of core X cross section class of conductor Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Nominal Overall Diameter Approx. Weight
mm2 No./mm mm mm mm mm mm kg/km
0.5mm2
2x0.5 2 0.4 0.9 0.9 1.3 11.8 287
3x0.5 2 0.4 0.9 0.9 1.3 12.2 312
4x0.5 2 0.4 0.9 0.9 1.3 12.9 346
5x0.5 2 0.4 0.9 0.9 1.3 13.7 383
8x0.5 2 0.4 1.0 0.9 1.4 15.7 491
10x0.5 2 0.4 1.0 0.9 1.4 17.6 579
12x0.5 2 0.4 1.0 0.9 1.4 18.0 616
14x0.5 2 0.4 1.0 0.9 1.4 18.7 663
16x0.5 2 0.4 1.0 0.9 1.4 19.4 713
20x0.5 2 0.4 1.1 1.25 1.5 21.8 960
24x0.5 2 0.4 1.1 1.25 1.5 24.0 1103
27x0.5 2 0.4 1.1 1.25 1.5 24.5 1155
30x0.5 2 0.4 1.2 1.25 1.5 25.4 1239
37x0.5 2 0.4 1.2 1.25 1.6 27.1 1403
40x0.5 2 0.4 1.2 1.25 1.6 27.9 1474
0.75mm2
2x0.75 2 0.4 0.9 0.9 1.3 12.1 304
3x0.75 2 0.4 0.9 0.9 1.3 12.6 333
4x0.75 2 0.4 0.9 0.9 1.4 13.5 380
5x0.75 2 0.4 1.0 0.9 1.4 14.5 433
8x0.75 2 0.4 1.0 0.9 1.4 16.3 536
10x0.75 2 0.4 1.1 0.9 1.5 18.7 657
12x0.75 2 0.4 1.1 0.9 1.5 19.1 702
14x0.75 2 0.4 1.1 0.9 1.5 19.9 758
16x0.75 2 0.4 1.1 1.25 1.5 21.4 945
20x0.75 2 0.4 1.2 1.25 1.6 23.1 1089
24x0.75 2 0.4 1.3 1.25 1.6 25.7 1273
27x0.75 2 0.4 1.3 1.25 1.6 26.2 1337
30x0.75 2 0.4 1.3 1.25 1.6 26.9 1414
37x0.75 2 0.4 1.3 1.25 1.7 28.8 1607
40x0.75 2 0.4 1.4 1.25 1.7 29.9 1712
1.0mm2
2x1.0 2 0.4 0.9 0.9 1.3 12.6 326
3x1.0 2 0.4 0.9 0.9 1.3 13.0 360
4x1.0 2 0.4 0.9 0.9 1.4 14.0 413
5x1.0 2 0.4 0.9 0.9 1.4 15.0 461
8x1.0 2 0.4 1.0 0.9 1.4 17.0 591
10x1.0 2 0.4 1.0 0.9 1.5 19.3 713
12x1.0 2 0.4 1.0 0.9 1.5 19.8 767
14x1.0 2 0.4 1.0 1.25 1.5 21.3 960
16x1.0 2 0.4 1.1 1.25 1.5 22.4 1052
20x1.0 2 0.4 1.2 1.25 1.5 23.0 1204
24x1.0 2 0.4 1.2 1.25 1.6 26.8 1406
27x1.0 2 0.4 1.2 1.25 1.6 27.3 1483
30x1.0 2 0.4 1.2 1.25 1.6 28.1 1574
37x1.0 2 0.4 1.3 1.25 1.7 30.3 1823
40x1.0 2 0.4 1.3 1.60 1.7 31.9 2121
1.5mm2
2x1.5 2 0.5 0.9 0.9 1.4 13.7 379
3x1.5 2 0.5 0.9 0.9 1.4 14.2 423
4x1.5 2 0.5 1.0 0.9 1.4 15.4 491
5x1.5 2 0.5 1.0 0.9 1.4 16.4 552
8x1.5 2 0.5 1.1 0.9 1.5 18.9 727
10x1.5 2 0.5 1.1 1.25 1.5 22.1 1000
12x1.5 2 0.5 1.1 1.25 1.5 22.6 1075
14x1.5 2 0.5 1.2 1.25 1.5 23.8 1184
16x1.5 2 0.5 1.2 1.25 1.6 25.0 1294
20x1.5 2 0.5 1.3 1.25 1.6 26.8 1488
24x1.5 2 0.5 1.3 1.25 1.7 30.0 1741
27x1.5 2 0.5 1.4 1.25 1.7 30.7 1866
30x1.5 2 0.5 1.4 1.6 1.7 32.4 2191
37x1.5 2 0.5 1.4 1.6 1.8 34.7 2502
40x1.5 2 0.5 1.5 1.6 1.8 35.9 2663
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information.

500v
conductor RE-2X(St)HSWAH...CI
no. of core X cross section class of conductor Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Nominal Overall Diameter Approx. Weight
mm2 No./mm mm mm mm mm mm kg/km
0.5mm2
2x0.5 2 0.6 1.0 0.9 1.4 12.7 319
3x0.5 2 0.6 1.0 0.9 1.4 13.3 351
4x0.5 2 0.6 1.0 0.9 1.4 14.2 395
5x0.5 2 0.6 1.0 0.9 1.4 15.2 444
8x0.5 2 0.6 1.1 0.9 1.5 17.3 560
10x0.5 2 0.6 1.2 0.9 1.6 19.8 679
12x0.5 2 0.6 1.2 1.25 1.6 21.1 854
14x0.5 2 0.6 1.2 1.25 1.6 22.0 922
16x0.5 2 0.6 1.3 1.25 1.7 23.0 996
20x0.5 2 0.6 1.3 1.25 1.7 24.6 1124
24x0.5 2 0.6 1.4 1.25 1.8 27.6 1324
27x0.5 2 0.6 1.5 1.25 1.8 28.1 1390
30x0.5 2 0.6 1.5 1.25 1.8 29.0 1476
37x0.5 2 0.6 1.6 1.25 1.9 31.1 1675
40x0.5 2 0.6 1.6 1.6 1.9 32.9 1979
0.75mm2
2x0.75 2 0.6 1.0 0.9 1.4 13.2 339
3x0.75 2 0.6 1.0 0.9 1.4 13.7 374
4x0.75 2 0.6 1.0 0.9 1.4 14.7 424
5x0.75 2 0.6 1.1 0.9 1.5 15.8 478
8x0.75 2 0.6 1.1 0.9 1.5 18.0 608
10x0.75 2 0.6 1.2 1.25 1.6 21.3 869
12x0.75 2 0.6 1.2 1.25 1.6 21.9 927
14x0.75 2 0.6 1.3 1.25 1.6 22.9 1004
16x0.75 2 0.6 1.3 1.25 1.7 24.0 1087
20x0.75 2 0.6 1.4 1.25 1.7 25.7 1232
24x0.75 2 0.6 1.5 1.25 1.8 28.8 1454
27x0.75 2 0.6 1.5 1.25 1.8 29.4 1531
30x0.75 2 0.6 1.5 1.25 1.8 30.4 1629
37x0.75 2 0.6 1.6 1.6 1.9 33.3 2067
40x0.75 2 0.6 1.7 1.6 2.0 34.4 2183
1.0mm2
2x1.0 2 0.6 1.0 0.9 1.4 13.6 363
3x1.0 2 0.6 1.0 0.9 1.4 14.2 404
4x1.0 2 0.6 1.0 0.9 1.4 15.3 460
5x1.0 2 0.6 1.1 0.9 1.5 16.4 520
8x1.0 2 0.6 1.2 0.9 1.5 18.8 668
10x1.0 2 0.6 1.3 1.25 1.6 22.3 951
12x1.0 2 0.6 1.3 1.25 1.6 22.9 1019
14x1.0 2 0.6 1.3 1.25 1.7 24.0 1107
16x1.0 2 0.6 1.4 1.25 1.7 25.1 1201
20x1.0 2 0.6 1.4 1.25 1.8 26.9 1369
24x1.0 2 0.6 1.5 1.25 1.8 30.2 1619
27x1.0 2 0.6 1.6 1.25 1.9 30.9 1710
30x1.0 2 0.6 1.6 1.6 1.9 32.6 2030
37x1.0 2 0.6 1.7 1.6 2.0 35.0 2309
40x1.0 2 0.6 1.7 1.6 2.0 36.1 2442
1.5mm2
2x1.5 2 0.6 1.0 0.9 1.4 14.2 395
3x1.5 2 0.6 1.0 0.9 1.4 14.9 444
4x1.5 2 0.6 1.1 0.9 1.5 16.0 509
5x1.5 2 0.6 1.1 0.9 1.5 17.2 578
8x1.5 2 0.6 1.2 0.9 1.6 19.8 751
10x1.5 2 0.6 1.3 1.25 1.7 23.5 1065
12x1.5 2 0.6 1.3 1.25 1.7 24.2 1147
14x1.5 2 0.6 1.4 1.25 1.7 25.3 1251
16x1.5 2 0.6 1.4 1.25 1.7 26.5 1362
20x1.5 2 0.6 1.5 1.25 1.8 28.5 1560
24x1.5 2 0.6 1.6 1.6 1.9 32.8 2058
27x1.5 2 0.6 1.6 1.6 1.9 33.5 2174
30x1.5 2 0.6 1.7 1.6 2.0 34.6 2317
37x1.5 2 0.6 1.8 1.6 2.0 37.1 2650
40x1.5 2 0.6 1.8 1.6 2.1 38.4 2807
2.5mm2
2x2.5 2 0.7 1.1 0.9 1.5 15.7 469
3x2.5 2 0.7 1.1 0.9 1.5 16.4 534
4x2.5 2 0.7 1.1 0.9 1.5 17.7 619
5x2.5 2 0.7 1.2 0.9 1.5 19.1 709
8x2.5 2 0.7 1.3 1.25 1.6 22.9 1078
10x2.5 2 0.7 1.4 1.25 1.7 26.4 1321
12x2.5 2 0.7 1.4 1.25 1.8 27.1 1433
14x2.5 2 0.7 1.5 1.25 1.8 28.4 1572
16x2.5 2 0.7 1.5 1.25 1.8 29.9 1720
20x2.5 2 0.7 1.6 1.6 1.9 32.9 2195
24x2.5 2 0.7 1.8 1.6 2.0 37.1 2604
27x2.5 2 0.7 1.8 1.6 2.0 37.8 2764
30x2.5 2 0.7 1.8 1.6 2.1 39.1 2958
37x2.5 2 0.7 1.9 1.6 2.2 42.1 3409
40x2.5 2 0.7 2.0 2 2.2 44.4 3949
Note: Other conductor sizes & core configurations are available upon request. The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information.
