BS EN 50288-7 Fire Resistant Individual and Overall Screened Fire Resistant Instrumentation Cables (Multipair)

RE-2X(St)H PiMF...CI

Fire Resistant Individual and Overall Screened Instrumentation Cables (Multipair)

APPLICATION

The BS EN 50288-7 unarmoured LSZH sheathed Fire Resistant cables are generally used for indoor installation and suitable for wet and damp areas. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

Basic design to BS EN 50288-7 (formerly BS 5308)

FIRE PERFORMANCE

Circuit Integrity IEC 60331-21; BS 6387 CWZ (Optional); BS EN 50200 (PH30/PH60/PH120)
Flame Retardance (Single Vertical Wire or cable test) IEC 60332-1-2; EN 60332-1-2
Halogen Free IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
Minimum Smoke Emission IEC 61034-2; EN 61034-2

VOLTAGE RATING

300, 500V

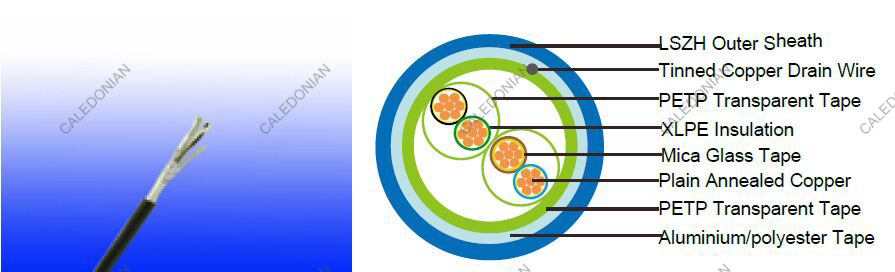

CABLE CONSTRUCTION

Conductor: Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and class 5.
Fire Barrier: Mica glass tape.
Insulation: Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.
Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm (≤1.5mm2) or 150mm (for 2.5mm2).
Individual Screen: Aluminium/polyester tape is applied over each pair with metallic side down in contact with tinned copper drain wire, 0.5mm².
Binder tape: PETP transparent tape.
Overall Screen: Aluminium/polyester tape is applied over the laid up pairs with metallic side down in contact with tinned copper drain wire, 0.5mm².
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour: Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
Outer sheath: Black. Other colours can be offered upon request.

Physical AND THERMAL PROPERTIES

Temperature range during operation: -30°C - +90°C
Temperature range fixed installation: -5°C - +50°C
Maximum short circuit temperature (5 Seconds): 250°C
Minimum bending radius: 7.5 x Overall Diameter

Electrical Properties

300v

conductor area size mm2 0.5 0.75 1.0 1.5
Insulation thickness (nominal) mm 0.4 0.4 0.4 0.5
Insulation thickness (minimum) mm 0.26 0.26 0.26 0.35
conductor resistance (20°c) ohm/km 36.7 25.0 18.5 12.3
Minimum Insulation resistance (20°c) Mohm/km 1000
Maximum Mutual capacitance nf/km 250
capacitance Unbalance pf/500m 500
Maximum l/R (ratio) μH/Ω 25 25 25 40
operating Voltage V 300
Dielectric strength for 1 minute ac V ≥1000
Dc V ≥2000

500v

conductor area size mm2 0.5 0.75 1.0 1.5 2.5
Insulation thickness (nominal) mm 0.6 0.6 0.6 0.6 0.7
Insulation thickness (minimum) mm 0.44 0.44 0.44 0.44 0.53
conductor resistance (20°c) ohm/km 36.7 25.0 18.5 12.3 7.4
Minimum Insulation resistance (20°c) Mohm/km 1000
Maximum Mutual capacitance nf/km 250
capacitance Unbalance pf/500m 500
Maximum l/R (ratio) μH/Ω 25 25 25 40 60
operating Voltage V 500
Dielectric strength for 1 minute ac V ≥2000
Dc V ≥3000

CONSTRUCTION PARAMETERS

300V

conductor RE-2X(St)H PiMF...CI
no. of core X cross section class of conductor Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Approx. Weight
mm2   mm mm mm kg/km
0.5mm2
2x2x0.5 2 0.4 1.0 12.0 138
3x2x0.5 2 0.4 1.0 12.7 173
4x2x0.5 2 0.4 1.1 14.2 222
5x2x0.5 2 0.4 1.1 15.6 263
8x2x0.5 2 0.4 1.1 18.5 377
10x2x0.5 2 0.4 1.2 22.2 478
12x2x0.5 2 0.4 1.2 23.0 545
16x2x0.5 2 0.4 1.3 25.8 705
20x2x0.5 2 0.4 1.4 28.2 865
24x2x0.5 2 0.4 1.5 32.5 1046
0.75mm2
2x2x0.75 2 0.4 1.0 12.6 155
3x2x0.75 2 0.4 1.1 13.6 206
4x2x0.75 2 0.4 1.1 15.0 253
5x2x0.75 2 0.4 1.2 16.7 312
8x2x0.75 2 0.4 1.2 19.8 449
10x2x0.75 2 0.4 1.3 23.6 567
12x2x0.75 2 0.4 1.3 24.4 648
16x2x0.75 2 0.4 1.4 27.5 839
20x2x0.75 2 0.4 1.5 30.0 1028
24x2x0.75 2 0.4 1.5 34.5 1221
1.0mm2
2x2x1.0 2 0.4 1.0 13.4 177
3x2x1.0 2 0.4 1.1 14.4 238
4x2x1.0 2 0.4 1.2 16.1 304
5x2x1.0 2 0.4 1.2 17.7 363
8x2x1.0 2 0.4 1.2 21.0 528
10x2x1.0 2 0.4 1.3 25.1 667
12x2x1.0 2 0.4 1.4 26.2 782
16x2x1.0 2 0.4 1.5 29.4 1012
20x2x1.0 2 0.4 1.5 32.0 1220
24x2x1.0 2 0.4 1.6 36.9 1473
1.5mm2
2x2x1.5 2 0.5 1.1 15.2 230
3x2x1.5 2 0.5 1.2 16.4 309
4x2x1.5 2 0.5 1.2 18.1 384
5x2x1.5 2 0.5 1.3 20.1 472
8x2x1.5 2 0.5 1.3 24.0 690
10x2x1.5 2 0.5 1.4 28.7 870
12x2x1.5 2 0.5 1.5 29.9 1021
16x2x1.5 2 0.5 1.6 33.6 1323
20x2x1.5 2 0.5 1.7 36.7 1622
24x2x1.5 2 0.5 1.8 42.3 1955
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information.

500v
conductor RE-2X(St)H PiMF...CI
no. of core X cross section class of conductor Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Approx. Weight
mm2   mm mm mm kg/km
0.5mm2
2x2x0.5 2 0.6 1.2 13.6 168
3x2x0.5 2 0.6 1.2 14.5 214
4x2x0.5 2 0.6 1.2 16.1 267
5x2x0.5 2 0.6 1.3 17.8 322
8x2x0.5 2 0.6 1.4 21.5 476
10x2x0.5 2 0.6 1.6 25.7 608
12x2x0.5 2 0.6 1.6 26.6 695
16x2x0.5 2 0.6 1.8 29.9 893
20x2x0.5 2 0.6 1.9 32.7 1086
24x2x0.5 2 0.6 2.0 37.8 1328
0.75mm2
2x2x0.75 2 0.6 1.2 14.3 187
3x2x0.75 2 0.6 1.2 15.3 239
4x2x0.75 2 0.6 1.3 16.9 300
5x2x0.75 2 0.6 1.3 18.8 363
8x2x0.75 2 0.6 1.5 22.6 539
10x2x0.75 2 0.6 1.7 27.1 689
12x2x0.75 2 0.6 1.7 28.1 789
16x2x0.75 2 0.6 1.8 31.6 1017
20x2x0.75 2 0.6 1.9 34.5 1239
24x2x0.75 2 0.6 2.1 39.9 1515
1.0mm2
2x2x1.0 2 0.6 1.2 15.1 211
3x2x1.0 2 0.6 1.2 16.2 272
4x2x1.0 2 0.6 1.3 17.9 343
5x2x1.0 2 0.6 1.4 19.9 416
8x2x1.0 2 0.6 1.5 23.9 621
10x2x1.0 2 0.6 1.7 28.7 794
12x2x1.0 2 0.6 1.7 29.7 912
16x2x1.0 2 0.6 1.9 33.5 1177
20x2x1.0 2 0.6 2.0 36.5 1437
24x2x1.0 2 0.6 2.2 42.3 1757
1.5mm2
2x2x1.5 2 0.6 1.2 16.1 245
3x2x1.5 2 0.6 1.3 17.3 320
4x2x1.5 2 0.6 1.4 19.2 404
5x2x1.5 2 0.6 1.4 21.3 492
8x2x1.5 2 0.6 1.6 25.7 739
10x2x1.5 2 0.6 1.8 30.8 945
12x2x1.5 2 0.6 1.8 31.9 1088
16x2x1.5 2 0.6 2.0 35.9 1409
20x2x1.5 2 0.6 2.1 39.2 1723
24x2x1.5 2 0.6 2.3 45.4 2106
2.5mm2
2x2x2.5 2 0.7 1.3 18.5 322
3x2x2.5 2 0.7 1.4 19.8 425
4x2x2.5 2 0.7 1.5 22.0 540
5x2x2.5 2 0.7 1.6 24.5 660
8x2x2.5 2 0.7 1.7 29.6 1000
10x2x2.5 2 0.7 2.0 35.5 1279
12x2x2.5 2 0.7 2.0 36.9 1478
16x2x2.5 2 0.7 2.2 41.5 1921
20x2x2.5 2 0.7 2.3 45.4 2354
24x2x2.5 2 0.7 2.6 52.6 2879
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information.
