BS EN 50288-7 Fire Resistant Overall Screened Instrumentation Cables (Multicore)

RE-2X(St)H...CI

Fire Resistant Overall Screened Instrumentation Cables (Multicore)

APPLICATION

The BS EN 50288-7 LSZH sheathed cables are generally used for indoor installation and suitable for wet and damp areas. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

Basic design to BS EN 50288-7 (formerly BS 5308)

FIRE PERFORMANCE

Circuit Integrity IEC 60331-21; BS 6387 CWZ (Optional); BS EN 50200 (PH30/PH60/PH120)
Flame Retardance (Single Vertical Wire or cable test) IEC 60332-1-2; EN 60332-1-2
Halogen Free IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
Minimum Smoke Emission IEC 61034-2; EN 61034-2

VOLTAGE RATING

300, 500V

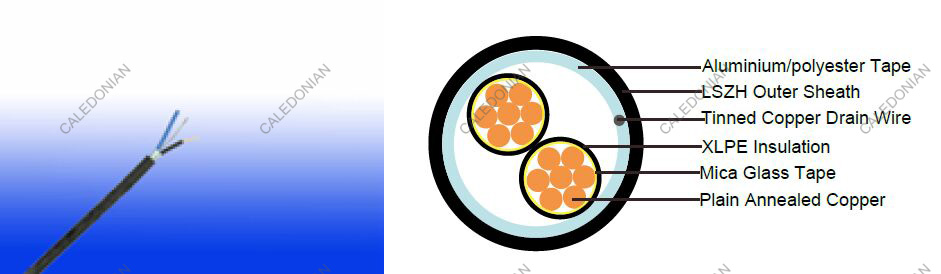

CABLE CONSTRUCTION

Conductor: Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and class 5.
Fire Barrier: Mica glass tape.
Insulation: Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.
Overall Screen: Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm².
Outer Sheath: Halogen free flame retardant compound to EN 50290-2-27.
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour: Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
Outer sheath: Black. Other colours can be offered upon request.

Physical AND THERMAL PROPERTIES

Temperature range during operation: -30°C - +90°C
Temperature range fixed installation: -5°C - +50°C
Maximum short circuit temperature (5 Seconds): 160°C
Minimum bending radius: 7.5 x Overall Diameter

Electrical Properties

300v

conductor area size mm2 0.5 0.75 1.0 1.5
Insulation thickness (nominal) mm 0.4 0.4 0.4 0.5
Insulation thickness (minimum) mm 0.26 0.26 0.26 0.35
conductor resistance (20°c) ohm/km 36.7 25.0 18.5 12.3
Minimum Insulation resistance (20°c) Mohm/km 1000
Maximum Mutual capacitance nf/km 250
capacitance Unbalance pf/500m 500
Maximum l/R (ratio) μH/Ω 25 25 25 40
operating Voltage V 300
Dielectric strength for 1 minute ac V ≥1000
Dc V ≥2000

500v

conductor area size mm2 0.5 0.75 1.0 1.5 2.5
Insulation thickness (nominal) mm 0.6 0.6 0.6 0.6 0.7
Insulation thickness (minimum) mm 0.44 0.44 0.44 0.44 0.53
conductor resistance (20°c) ohm/km 36.7 25.0 18.5 12.3 7.4
Minimum Insulation resistance (20°c) Mohm/km 1000
Maximum Mutual capacitance nf/km 250
capacitance Unbalance pf/500m 500
Maximum l/R (ratio) μH/Ω 25 25 25 40 60
operating Voltage V 500
Dielectric strength for 1 minute ac V ≥2000
Dc V ≥3000

CONSTRUCTION PARAMETERS

300V

conductor RE-2X(St)H...CI
no. of core X cross section class of conductor Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Approx. Weight
mm2   mm mm mm kg/km
0.5mm2
2x0.5 2 0.4 0.9 7.4 65
3x0.5 2 0.4 0.9 7.8 79
4x0.5 2 0.4 0.9 8.5 95
5x0.5 2 0.4 0.9 9.3 112
8x0.5 2 0.4 1.0 11.1 164
10x0.5 2 0.4 1.0 13.0 200
12x0.5 2 0.4 1.0 13.4 226
14x0.5 2 0.4 1.0 14.1 254
16x0.5 2 0.4 1.0 14.8 283
20x0.5 2 0.4 1.1 16.3 348
24x0.5 2 0.4 1.1 18.5 412
27x0.5 2 0.4 1.1 19.0 450
30x0.5 2 0.4 1.2 19.9 503
37x0.5 2 0.4 1.2 21.4 598
40x0.5 2 0.4 1.2 22.2 639
0.75mm2
2x0.75 2 0.4 0.9 7.7 73
3x0.75 2 0.4 0.9 8.2 91
4x0.75 2 0.4 0.9 8.9 110
5x0.75 2 0.4 1.0 9.9 136
8x0.75 2 0.4 1.0 11.7 192
10x0.75 2 0.4 1.1 13.9 244
12x0.75 2 0.4 1.1 14.3 276
14x0.75 2 0.4 1.1 15.1 311
16x0.75 2 0.4 1.1 15.9 347
20x0.75 2 0.4 1.2 17.4 426
24x0.75 2 0.4 1.3 20.0 517
27x0.75 2 0.4 1.3 20.5 565
30x0.75 2 0.4 1.3 21.2 616
37x0.75 2 0.4 1.3 22.9 733
40x0.75 2 0.4 1.4 24.0 800
1.0mm2
2x1.0 2 0.4 0.9 8.2 84
3x1.0 2 0.4 0.9 8.6 106
4x1.0 2 0.4 0.9 9.4 129
5x1.0 2 0.4 0.9 10.3 154
8x1.0 2 0.4 1.0 12.4 229
10x1.0 2 0.4 1.0 14.5 281
12x1.0 2 0.4 1.0 15.0 322
14x1.0 2 0.4 1.0 15.8 365
16x1.0 2 0.4 1.1 16.9 419
20x1.0 2 0.4 1.2 18.5 516
24x1.0 2 0.4 1.2 21.1 612
27x1.0 2 0.4 1.2 21.6 672
30x1.0 2 0.4 1.2 22.4 735
37x1.0 2 0.4 1.3 24.4 896
40x1.0 2 0.4 1.3 25.3 960
1.5mm2
2x1.5 2 0.5 0.9 9.1 104
3x1.5 2 0.5 0.9 9.6 134
4x1.5 2 0.5 1.0 10.8 172
5x1.5 2 0.5 1.0 11.8 205
8x1.5 2 0.5 1.1 14.1 306
10x1.5 2 0.5 1.1 16.6 377
12x1.5 2 0.5 1.1 17.1 433
14x1.5 2 0.5 1.2 18.3 503
16x1.5 2 0.5 1.2 19.3 564
20x1.5 2 0.5 1.3 21.1 694
24x1.5 2 0.5 1.3 24.1 824
27x1.5 2 0.5 1.4 24.8 922
30x1.5 2 0.5 1.4 25.8 1009
37x1.5 2 0.5 1.4 27.9 1211
40x1.5 2 0.5 1.5 29.1 1317
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information.

500v
conductor RE-2X(St)H...CI
no. of core X cross section class of conductor Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Approx. Weight
mm2   mm mm mm kg/km
0.5mm2
2x0.5 2 0.6 1.0 8.2 74
3x0.5 2 0.6 1.0 8.7 91
4x0.5 2 0.6 1.0 9.6 111
5x0.5 2 0.6 1.0 10.5 132
8x0.5 2 0.6 1.1 12.5 189
10x0.5 2 0.6 1.2 14.9 238
12x0.5 2 0.6 1.2 15.4 269
14x0.5 2 0.6 1.2 16.2 305
16x0.5 2 0.6 1.3 17.2 341
20x0.5 2 0.6 1.3 18.7 411
24x0.5 2 0.6 1.4 21.5 499
27x0.5 2 0.6 1.5 22.0 544
30x0.5 2 0.6 1.5 22.9 595
37x0.5 2 0.6 1.6 24.9 714
40x0.5 2 0.6 1.6 25.9 768
0.75mm2
2x0.75 2 0.6 1.0 8.6 83
3x0.75 2 0.6 1.0 9.1 103
4x0.75 2 0.6 1.0 10.0 126
5x0.75 2 0.6 1.1 11.0 151
8x0.75 2 0.6 1.1 13.2 218
10x0.75 2 0.6 1.2 15.6 274
12x0.75 2 0.6 1.2 16.2 312
14x0.75 2 0.6 1.3 17.1 354
16x0.75 2 0.6 1.3 18.1 397
20x0.75 2 0.6 1.4 19.7 480
24x0.75 2 0.6 1.5 22.7 582
27x0.75 2 0.6 1.5 23.2 637
30x0.75 2 0.6 1.5 24.2 697
37x0.75 2 0.6 1.6 26.2 839
40x0.75 2 0.6 1.7 27.3 902
1.0mm2
2x1.0 2 0.6 1.0 9.0 94
3x1.0 2 0.6 1.0 9.6 118
4x1.0 2 0.6 1.0 10.6 146
5x1.0 2 0.6 1.1 11.7 175
8x1.0 2 0.6 1.2 13.9 255
10x1.0 2 0.6 1.3 16.5 322
12x1.0 2 0.6 1.3 17.1 368
14x1.0 2 0.6 1.3 18.1 418
16x1.0 2 0.6 1.4 19.2 470
20x1.0 2 0.6 1.4 20.9 570
24x1.0 2 0.6 1.5 24.1 691
27x1.0 2 0.6 1.6 24.6 758
30x1.0 2 0.6 1.6 25.6 831
37x1.0 2 0.6 1.7 27.8 1002
40x1.0 2 0.6 1.7 28.9 1079
1.5mm2
2x1.5 2 0.6 1.0 9.6 110
3x1.5 2 0.6 1.0 10.2 140
4x1.5 2 0.6 1.1 11.3 174
5x1.5 2 0.6 1.1 12.4 210
8x1.5 2 0.6 1.2 14.9 309
10x1.5 2 0.6 1.3 17.7 391
12x1.5 2 0.6 1.3 18.3 448
14x1.5 2 0.6 1.4 19.4 511
16x1.5 2 0.6 1.4 20.5 576
20x1.5 2 0.6 1.5 22.4 701
24x1.5 2 0.6 1.6 25.8 850
27x1.5 2 0.6 1.6 26.4 935
30x1.5 2 0.6 1.7 27.5 1027
37x1.5 2 0.6 1.8 29.9 1241
40x1.5 2 0.6 1.8 31.1 1338
2.5mm2
2x2.5 2 0.7 1.1 10.9 145
3x2.5 2 0.7 1.1 11.7 188
4x2.5 2 0.7 1.1 12.9 236
5x2.5 2 0.7 1.2 14.3 287
8x2.5 2 0.7 1.3 17.1 428
10x2.5 2 0.7 1.4 20.4 541
12x2.5 2 0.7 1.4 21.1 625
14x2.5 2 0.7 1.5 22.3 715
16x2.5 2 0.7 1.5 23.7 807
20x2.5 2 0.7 1.6 25.8 986
24x2.5 2 0.7 1.8 29.8 1197
27x2.5 2 0.7 1.8 30.6 1320
30x2.5 2 0.7 1.8 31.8 1452
37x2.5 2 0.7 1.9 34.5 1761
40x2.5 2 0.7 2.0 36.0 1899
Note: Other conductor sizes & core configurations are available upon request. The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information.
