1x RG11 + 3x2.5 Power Cable + 3x1x2x22AWG Data Pairs Unarmoured PVC Sheathed Composite Cable

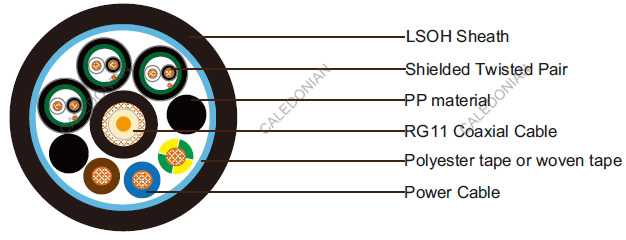

Construction:
1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)
| Conductor |
1.63mm Solid bare copper |
| Insulation |
Polyethylene.Thickness 7.25mm. |
| Shield |
Braidofbare copperwire.Coverage95% |
| Sheath |
LSZH sheath. Nominalouterdiameteris10.3mm. |
| Sheath Color |
Black |
3x1x2x22AWG Shielded Twisted Pair ( around coaxial cable)
| Conductor |
7/0.254mm Strandedtinnedcopper. |
| Insulation |
PVCmaterial.Thickness 0.50mm. |
| Insulation Color |
White andblack |
| Individual Shield |
Aluminum polyester tape |
| Drain Wire |
24AWGstrandedtinnedcopper |
| Sheath |
PVCsheath.Nominal outer diameter 4.8mm.Thickness0.76mm. |
| Sheath Color |
Black withwhitenumber code |
3x2.5mm² Power Cable ( around coaxial cable)
| Conductor |
2.5mm² Strandedtinnedcopper wire. |
| Insulation |
XLPE.Outerdiameter3.41mm |
| Insulation Color |
Blue,Brown and Green/Yellow |
Element Assembly
| Filler |
PPmaterial(aroundcoaxialcable) |
| WrappingTape |
Polyestertape orwoven tape |
| Outer Sheath |
PVC,thickness1.6mm,nominalouterdiameter25.0mm |
| Sheath Color |
Black |
| Cable weight |
480kg/km |
Electrical and Physical Properties@20°C:
Coaxial Cable
Impedance: 75±3Ohm (@1MHz)
Max.Attenuation:3.3dB/100m @50MHz
Power Cable
Electrical Resistance: 7.41Ohm/km
Insulation Resistance: ≥5500 MOhmxkm
Data Pairs
Electrical Resistance: 49Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
