FRA 59 SW4

Applications :

• FRA 59 SW4 cables are designed for flexible installations, inside and outside railway rolling stock.

Standards :

• ●DIN 5510-2

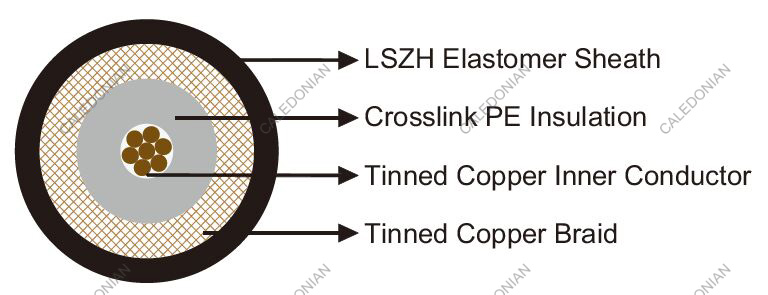

Construction :

• Inner conductor: Tinned copper.
  Insulation: Crosslink PE (PEX).
  Outer conductor: Tinned copper braid.
  Sheath: LSZH Elastomer.

Electrical Characteristics at 20 °C :

• Impedance	Ω	75+/-3
  Nominal Capacitance	pF/m	67
  Minimum Insulation Resistance	MΩ.km	100000
  Inner Conductor Resistance	MΩ/km	58
  Outer Conductor Resistance	MΩ/km	16.1
  Attenuation
  @10MHz	dB/100m	3
  @50MHz	dB/100m	8
  @100MHz	dB/100m	12
  @150MHz	dB/100m	15
  @200MHz	dB/100m	18
  @300MHz	dB/100m	23
  @400MHz	dB/100m	27
  @450MHz	dB/100m	29
  @500MHz	dB/100m	31
  @600MHz	dB/100m	35
  @800MHz	dB/100m	42
  @850MHz	dB/100m	44
  @900MHz	dB/100m	46
  @950MHz	dB/100m	47
  @1000MHz	dB/100m	49
  Velocity of propagation	%	66

Mechanical and Thermal Properties :

• Minimum Bending Radius: 30mm (static)
  Temperature Range: -40℃～ +105℃

Dimensions and Weight :

Conductor Construction No/mm	Nominal Inner Conductor Diameter mm	Nominal Outer Conductor Diameter mm	Nominal Overall Diameter mm	Nominal Weight kg/km
7/0.22	0.66	4.45	6.1	57
