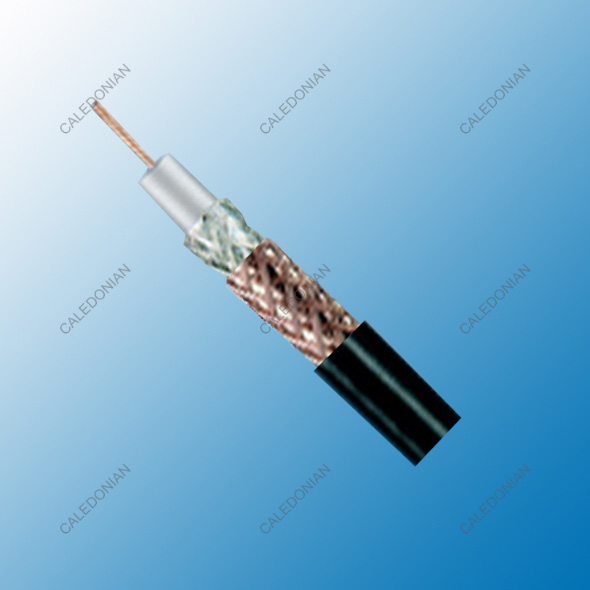

M17/2-RG 6 (RG 6 A/U) Coaxial Cables

Construction

Inner conductor  Copper clad steel(CCS)  Φ0.72 ± 0.025 mm
Dielectric  Low density PE  Φ4.70 ± 0.10 mm
Outer conductor(shield 1)  Silver plated copper  144 x 0.16 mm
Shield coverage  97%
Outer conductor(shield 2)  Plain copper  144 x 0.16 mm
Shield coverage  95%
Sheath  PVC or LSZH  Φ8.50 ± 0.10 mm

Electrical & Mechanical Characteristics

Impedance  75±5 Ohm
Nominal capacitance  67 pF/m
Velocity of propagation  66%
Insulation resistance  >2000 Mohm.Km
Inner conductor resistance  106 Ohm/Km
Outer conductor resistance  5.0 Ohm/Km
Test/Operatig Voltage(max)  5.0 KV/3.0 KV
Operating temperature range  -30 °C - +70 °C
Copper weight  46 Kg/Km
Cable weight (approx.)  64.6 Kg/Km
Screening effectiveness  >70 dB

Attenuation

Frequency(MHz)  Attenuation (dB/100 m)  Attenuation (dB/100ft)
50 5.8 1.77
100 8.5 2.59
200 12.5 3.81
400 18 5.49
500 20.3 6.19
600 22.6 6.89
860 27.5 8.38
1000 30.4 9.27

Return Loss

30-300 MHz  >28dB
300-600 MHz  >24dB
600-900 MHz  >22dB
