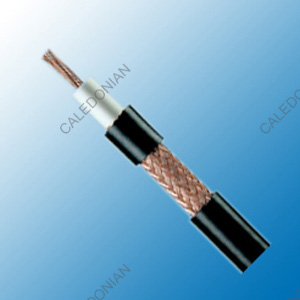

RG 8 A/U Coaxial Cables

Construction

Inner conductor  Plain copper  7 x 0.72 mm
Dielectric  Low density PE  Φ7.25 ± 0.18 mm
Outer conductor (shield)  Plain copper  192 x 0.2 mm
Shield coverage    98%
Sheath  PVC or LSZH  Φ10.4 ± 0.18 mm

Electrical & Mechanical Characteristics

Impedance  50±3 Ohm
Nominal capacitance  97 pF/m
Velocity of propagation  66%
Insulation resistance  >2000 Mohm.Km
Inner conductor resistance  6.2 Ohm/Km
Outer conductor resistance  4.0 Ohm/Km
Operating temperature range  -30 °C - +70 °C
Test/Operatig Voltage(max)  10KV/5KV
Copper Weight  84.3 Kg/Km
Cable weight (approx.)  171.5 Kg/Km
Screening effectiveness  100-900 MHz  >55dB

Attenuation

Frequency (MHz)  Attenuation (dB/100 m)   Attenuation (dB/100ft)
50 4.5 1.37
100 6.7 2.04
200 9.9 3.02
400 14.3 4.36
500 16.1 4.91
600 17.8 5.43
860 22.1 6.74
1000 24.3 7.41

Return Loss

30-300 MHz  >31dB
300-600 MHz  >28dB
600-900 MHz  >27dB
