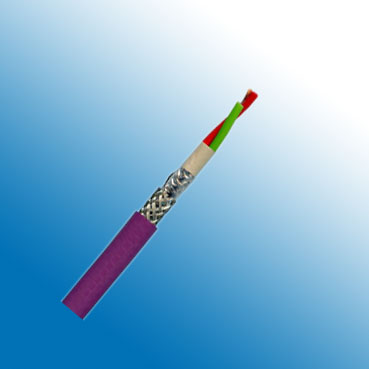

Armored Hybrid Profibus DP Cable
(2*0.64mm (22AWG) Cu/F-PE/Al-foil screen/TCWB+Power 2*1.5mm2 Class5 Cu/XLPE) Assembly /LSZH/GSWA/LSZH, UV resistance, FR to IEC 60332-3-22 Cat.A

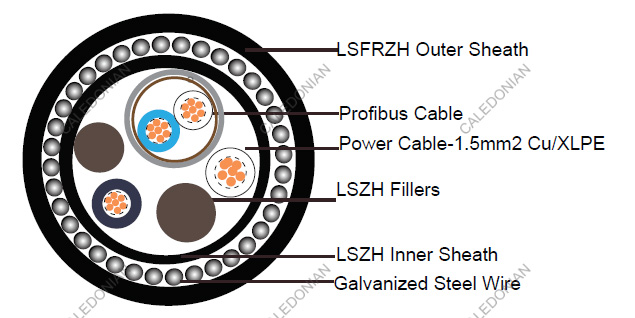

Construction:
Part A: Profibus DP
| Pair No. X Conductor Size |
1PX22AWG 1/0.64mm |
| Conductor |
Solid plain copper 1/0.64mm |
| Insulation |
Foam PE |
| Shielding 1 |
Aluminium foil |
| Shielding 2 |
Tinned copper wire braid - 65% coverage
|
| Sheath |
LSZH |
Part B: Power Cable 0.6/1KV
| Conductor |
1.5mmsq flexible copper wire to IEC60228 class5 |
| Insulation |
XLPE,nominal thickness 0.7mm |
| Insulation Color |
Black, White or as per request |
2 parts assembly with fillers
| Amour |
Galvanised steel wire,0.9mm diameter |
| Outer Sheath |
LSFRZH |
| Overall Diameter |
16.9 +/-3mm |
| Approx. Weight |
375KG/KM |
| Core Color of Profibus |
Red&Green |
| Sheath Color |
Black or other color upon request |
Electrical Data:
| Characteristic Impedance @ 3-20MHz |
150 Ω ± 15 Ω |
| Conductor Resistance |
54.5 Ohm/km max. |
| Test Voltage |
1KV |
| Operate Voltage |
300V RMS |
| Mutual capacitance |
29.5 pF/m nominal |
| Max. Attenuation |
0.2MHz |
2 dB/100m |
| 4MHz |
2.95dB/100m |
| 16MHz |
4. 9dB/100m |
Power Cable
Electrical Resistance: 12.1 ohm/km
Insulation Resistance: 1000M oh.km
Rated voltage: 0.6/1KV
Testing voltage:3500V
Technical Data:
| Min. Bending Radius |
6-8 x OD mm |
| Operating Temp.Range, min. |
-30 °C |
| Operating Temp.Range, max. |
+90 °C |
Fire Performance
| Reduced Fire Propagation (Vertically-mounted bundled cables test) |
IEC 60332-3-22 Cat.A |
| Halogen Free |
IEC 60754-1/-2 |
| Low Smoke Capacity |
IEC 61034-1 |
| Flame Retardance |
IEC 60332-1 |
