400Hz Airport Cables 4-core With Control Wires

VDE 0295 400Hz Airport Cables 4-core With Control Wires

Applications

These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

Standards

VDE 0295

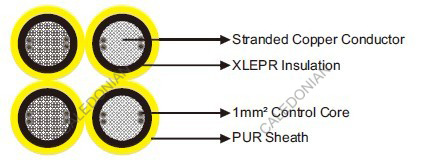

Construction

Conductor: Stranded copper conductor, Class 5/Class 6 to VDE 0295/IEC 60228.
Insulation: XLEPR.
Control Core: 1mm² stranded copper conductor with polyolefin insulation.
Sheath: PUR.

Technical Data

Rated Voltage Uo/U (Um) 600/1000V
Operating Temperatures -40℃~+90℃
Minimum Bending Radius static: 4×OD; dynamic: 5×OD
Halogen Free Yes
No Corrosive & Toxic Gases Yes
Flame Retardant Yes
Abrasion Resistant Yes
UV Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction Nominal Diameter of Single Core >Nominal Overall Diameter Nominal Weight
No. ×mm² mm mm kg/km
4×(1×35+4×1) 13.7 33.0 2600
4×(1×50+4×1) 18.2 44.0 3900
4×(1×70+4×1) 21.2 51.3 4300
4×(1×120+4×1) 23.2 56.0 7400
